Fuel Filler Pipe

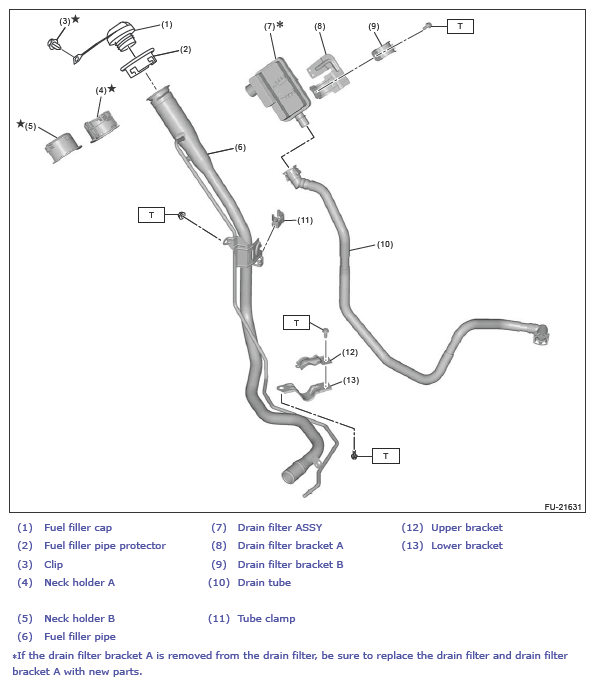

Fig 1: Fuel Filler Pipe Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)

*If the drain filter bracket A is removed from the drain filter, be sure to replace the drain filter and drain filter bracket A with new parts.

• For the fuel lid components, refer to the "SECURITY AND LOCKS". Ref. to SECURITY AND LOCKS>General Description>COMPONENT .
