LH Side

  1. Remove the battery.

    Except for hybrid model:

    Ref. to STARTING/CHARGING SYSTEMS (H4DO (EXCEPT FOR HEV))>BATTERY>REMOVAL .

    Hybrid model:

    Ref. to STARTING/CHARGING SYSTEMS (H4DO(HEV))> BATTERY>REMOVAL .

  2. Disconnect connector (A) from ECM.
    CAUTION: In order to prevent damaging the connector (A), check that the lock is released completely when moving the lever.
    NOTE: To disconnect the connector (A), press the portion (a) shown in the figure to release the lock and move the lever in the direction of arrow.
    G13223989Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector (B) and terminal (C) from the main fuse box, and remove the engine wiring harness from the clip (D).
    • Except for hybrid model
      G13600120Courtesy of SUBARU OF AMERICA, INC.
    • Hybrid model
      G13230248Courtesy of SUBARU OF AMERICA, INC.

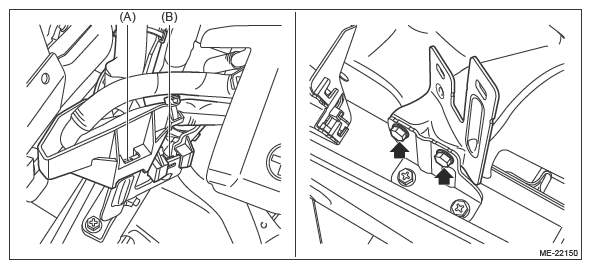

  4. Release the claw (A) securing the battery cable assembly to the bracket. (Except for hybrid model)
  5. Release the claw (B) securing the engine wiring harness to the bracket, and place it aside so that it does not interfere with work.
  6. Remove the bracket.
    G13230244Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the connector from ignition coil.
    NOTE: While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
    G10318929Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the ignition coil.
    G11253693Courtesy of SUBARU OF AMERICA, INC.
