Camera Control Module

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the under cover assembly driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .

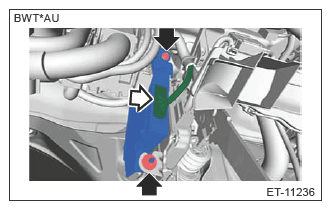

  3. Remove the camera control assembly.
    1. Disconnect the connector.
    2. Remove the bolts and nuts, and remove the camera control assembly.
      G13952121Courtesy of SUBARU OF AMERICA, INC.
