Home >> Subaru >> 2021 >> Outback Touring XT >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (2.4L) >> Fuel Tank Protector >> Removal

Fuel Tank Protector: Removal

  1. Lift up the vehicle.

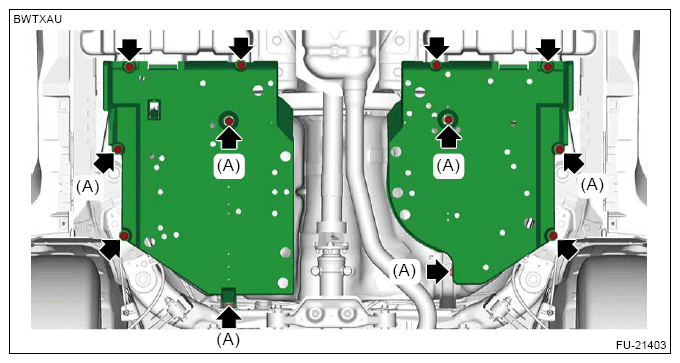

  2. Remove the bolt and clip (A) and remove the fuel tank protector.
G13948430Courtesy of SUBARU OF AMERICA, INC.
