Home >> Subaru >> 2021 >> Outback Touring XT >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (2.4L) >> Knock Sensor >> Inspection

Knock Sensor: Inspection

  1. Check that the knock sensor has no deformation, cracks or other damages.

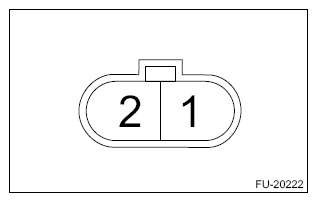

  2. Measure the resistance between knock sensor terminals.
G13948396Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Standard
1 and 2 560±28 kΩ
