Check Manifold Temperature Sensor Unit

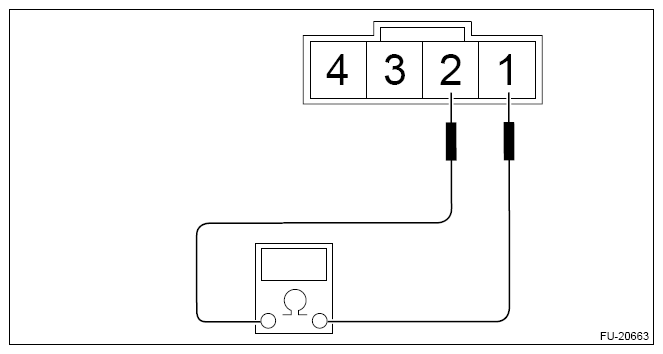

  1. Measure the resistance between engine coolant temperature sensor terminals.
G13948403Courtesy of SUBARU OF AMERICA, INC.
Temperature Terminal No. Standard
-20°C (-4°F) 1 and 2 15.4±0.8 kΩ
25°C (77°F) 2.0±0.8 kΩ
60°C (140°F) 0.59±0.8 kΩ
