Fuel Tank 2

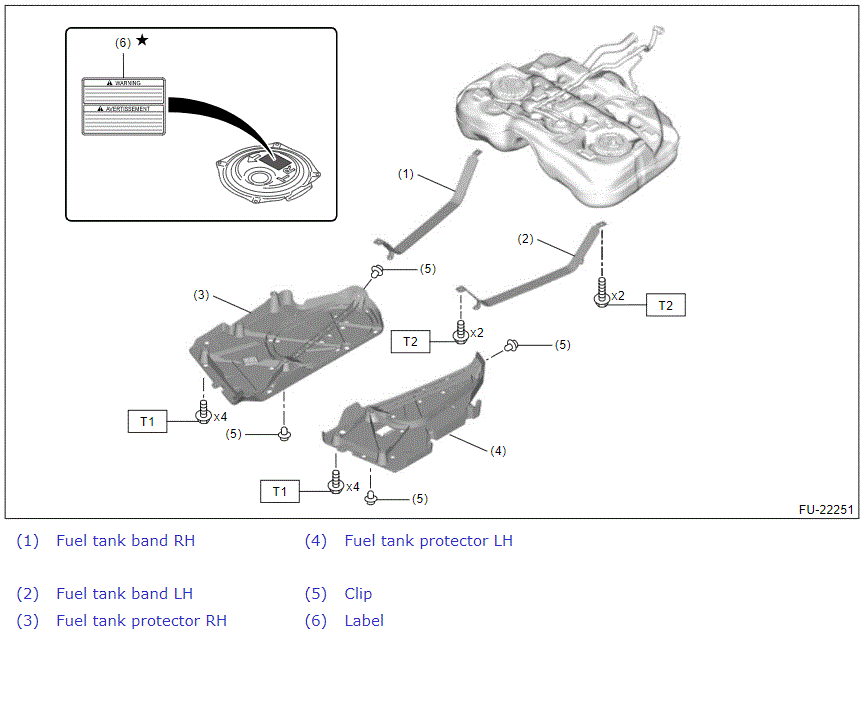

Fig 1: Exploded View Of Fuel Tank Components 2
G00611098Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: Ref. to  INSTALLATION  .
