Home >> Subaru >> 2022 >> Ascent Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Speed Control System >> Accelerator Pedal >> Removal

Accelerator Pedal: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

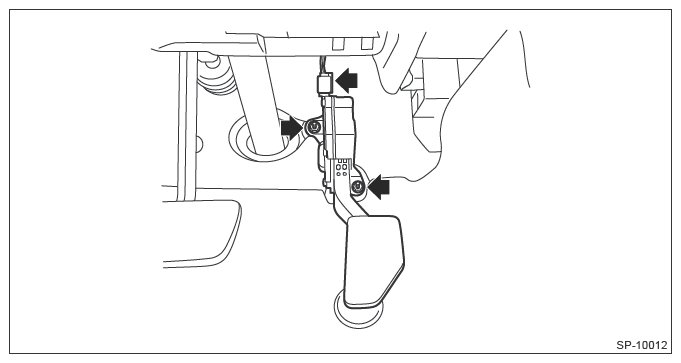

  2. Disconnect the connector and remove the accelerator pedal assembly.
G13199198Courtesy of SUBARU OF AMERICA, INC.
