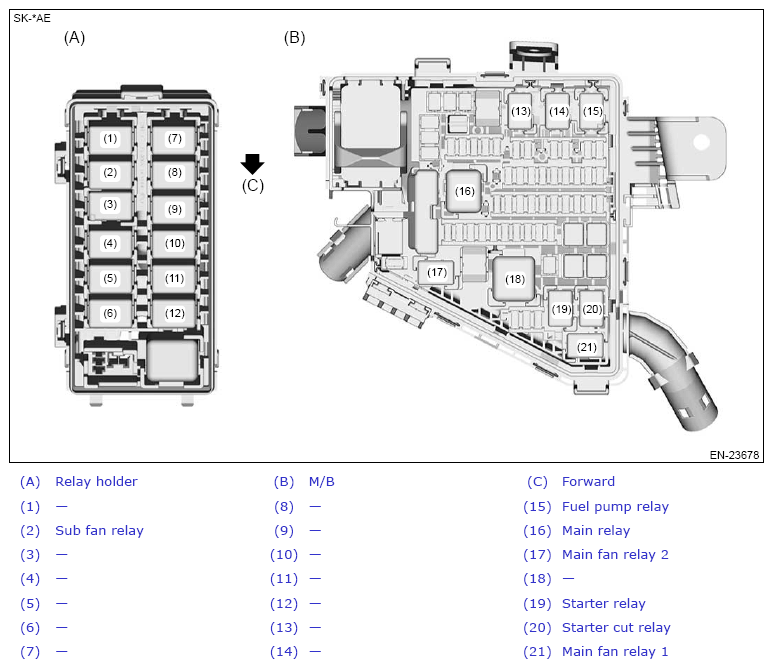

Fuse And Relay

G14411994Courtesy of SUBARU OF AMERICA, INC.
NOTE: Only shows parts required for engine diagnosis.
