Home >> Subaru >> 2022 >> Outback Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (2.5L) >> General Description >> Components With Torque Specifications >> Fuel Filler Pipe

Fuel Filler Pipe

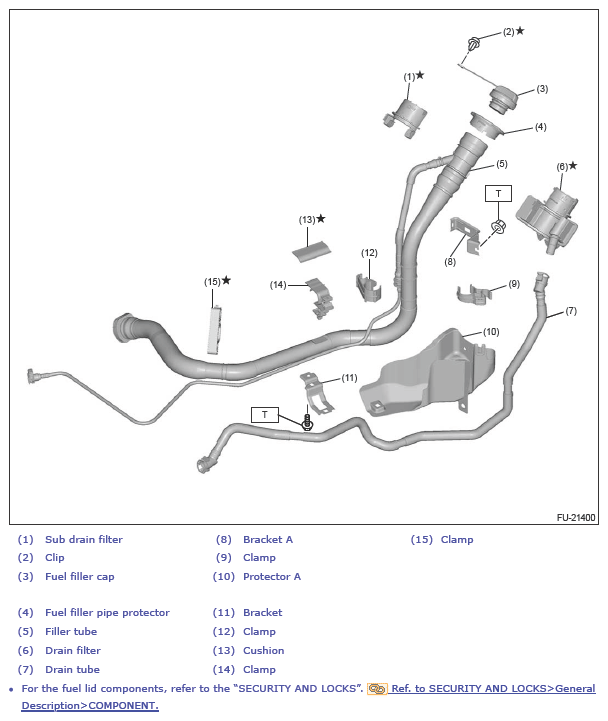

Fig 1: Fuel Filler Pipe Components

G13947045

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
