CPC Pressure Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL
  3. Remove the intake duct No. 2. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTAKE DUCT>REMOVAL>INTAKE DUCT NO. 2

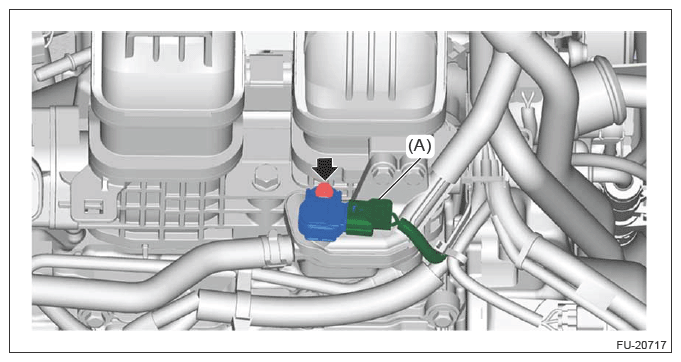

  4. Disconnect the connector (A) and remove the CPC pressure sensor.
    G13198317Courtesy of SUBARU OF AMERICA, INC.
