Home >> Subaru >> 2022 >> WRX Base, Standard Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System >> Mass Air Flow and Intake Air Temperature Sensor >> Removal

Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY

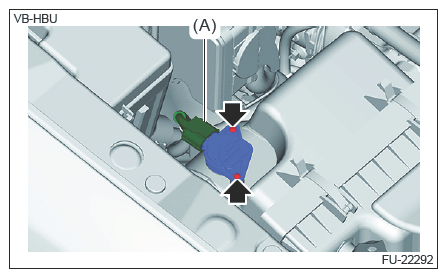

  2. Disconnect the connector (A) and remove the mass air flow and intake air temperature sensor.
    G14601044Courtesy of SUBARU OF AMERICA, INC.
