LH Side

  1. Remove the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>BATTERY> REMOVAL .

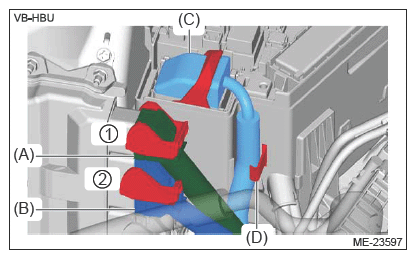

  2. Remove the connector (A) and connector (B) in numerical order shown in figure.
  3. Disconnect the connector (C), and remove the engine wiring harness from the clip (D).
    G14610737Courtesy of SUBARU OF AMERICA, INC.

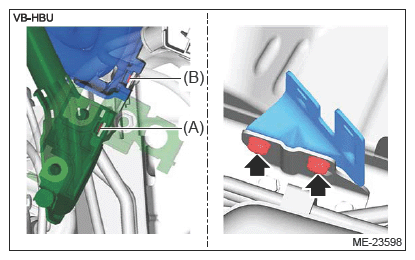

  4. Remove the claw (A) securing the battery cable assembly to the bracket, and place it aside so that it does not interfere with work.
  5. Release the claw (B) securing the engine wiring harness to the bracket, and place it aside so that it does not interfere with work.
  6. Remove the bracket.
    G14610738Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the connector from ignition coil.
    NOTE:

    While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.

    G10318929Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the ignition coil.
    G13199205Courtesy of SUBARU OF AMERICA, INC.
