Fuel Tank 2

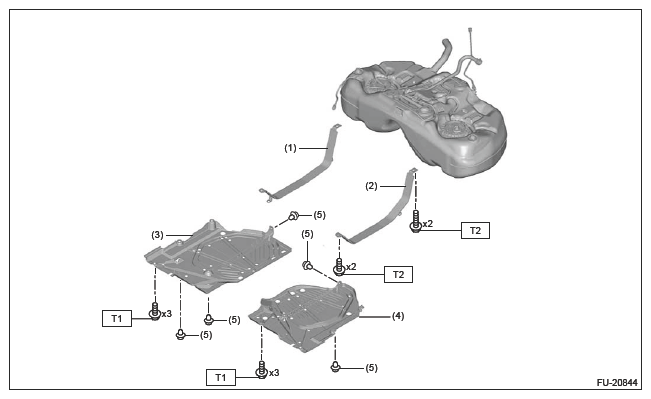

Fig 1: Fuel Tank 2 Components Location

G16340384

Courtesy of SUBARU OF AMERICA, INC.

(1)	Fuel tank band RH
(2)	Fuel tank band LH
(3)	Fuel tank protector RH
(4)	Fuel tank protector LH
(5)	Clip

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL TANK>INSTALLATION .
