Home >> Subaru >> 2023 >> Outback Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (2.5L) >> Manifold Absolute Pressure Sensor >> Removal

Manifold Absolute Pressure Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

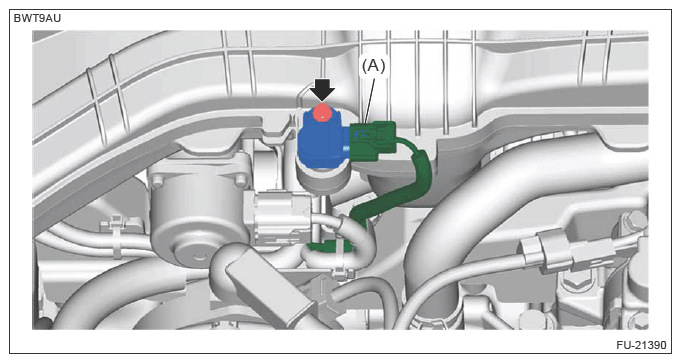

  2. Disconnect the connector (A) and remove the manifold absolute pressure sensor.
    G13618513Courtesy of SUBARU OF AMERICA, INC.
