Engine Oil Temperature Sensor: Removal

CAUTION: If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

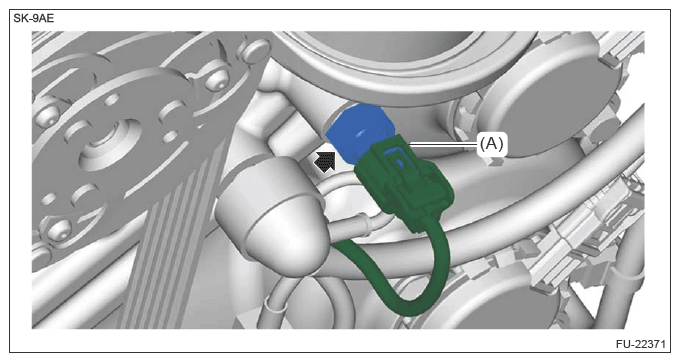

2. Disconnect the connector (A) and remove the engine oil temperature sensor from the chain cover.

Courtesy of SUBARU OF AMERICA, INC.
