Code 41 - No Ignition Signal

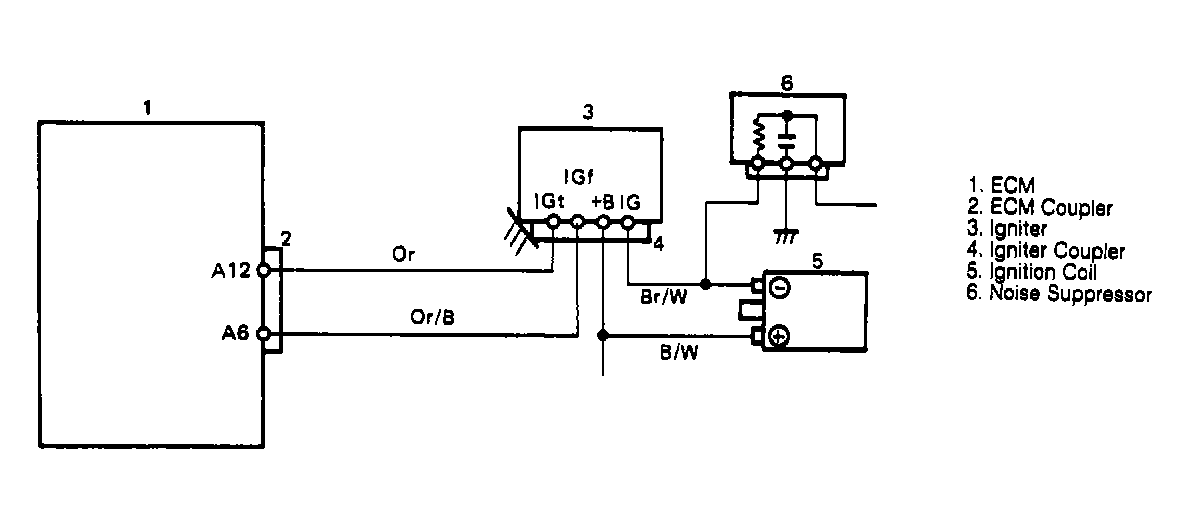

Fig 1: Code 41 Schematic, No Ignition Signal

G90E18030

Courtesy of SUZUKI OF AMERICA CORP.

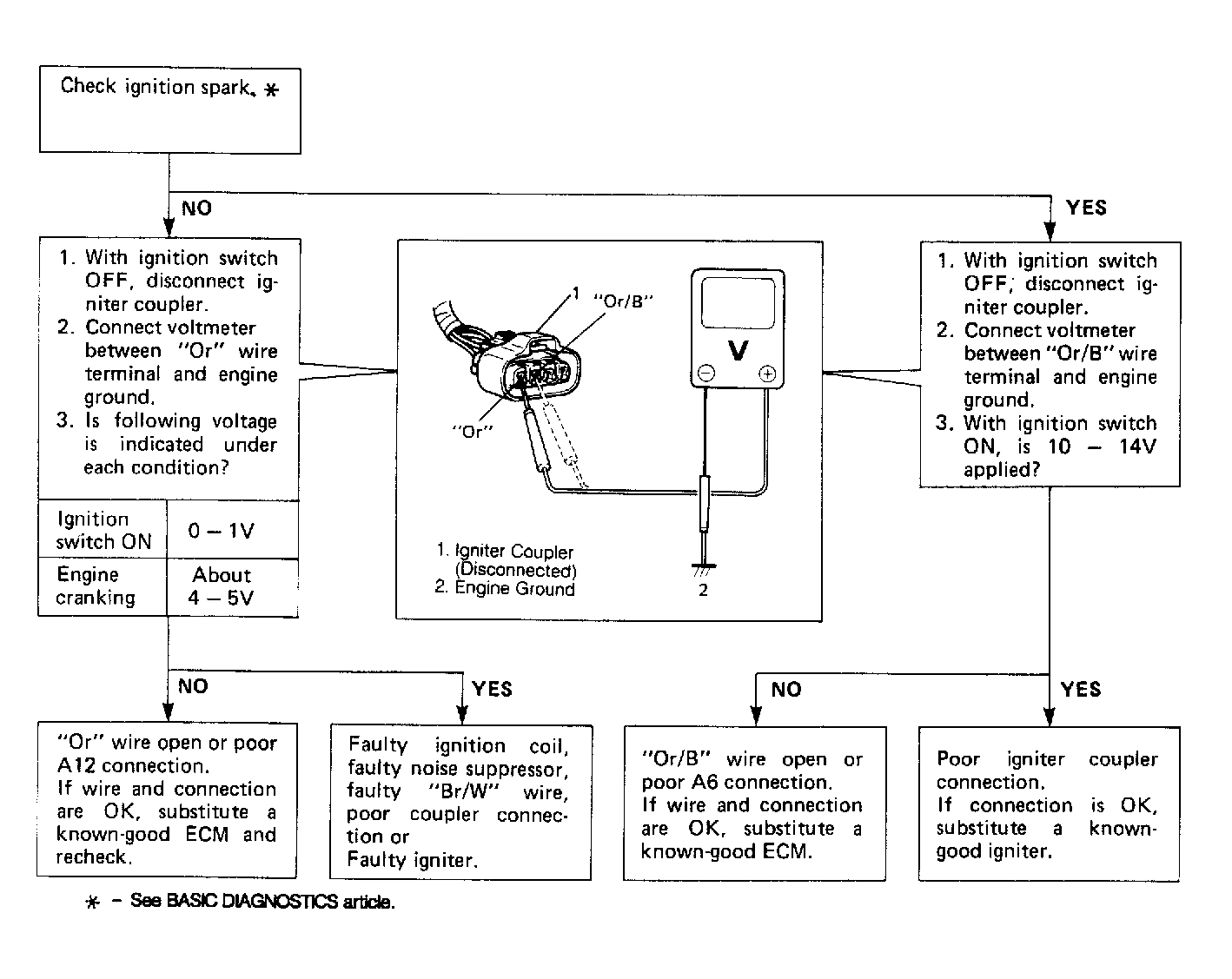

Fig 2: Code 41 Flow Chart, No Ignition Signal

G90F18031

Courtesy of SUZUKI OF AMERICA CORP.
