Ignition Coil Resistance

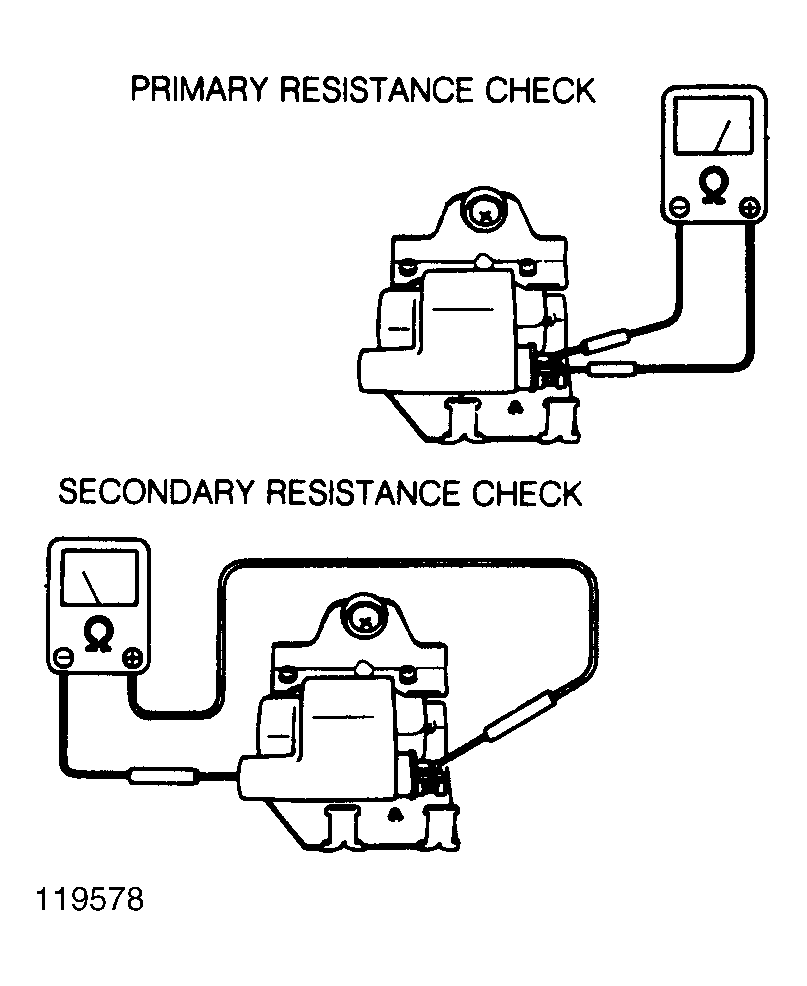

Remove secondary coil wire and primary wire connector from coil. Using ohmmeter, check coil resistances using primary and secondary terminals. See Fig 1 . Replace coil if not within specification. See IGNITION COIL RESISTANCE table.
IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)
| Application | Primary | Secondary |
|---|---|---|
| DOHC | .72-.88 | 10,200-14,000 |
| SOHC | 1.12-1.38 | 11,400-15,600 |
