Circuit Resistance Charts

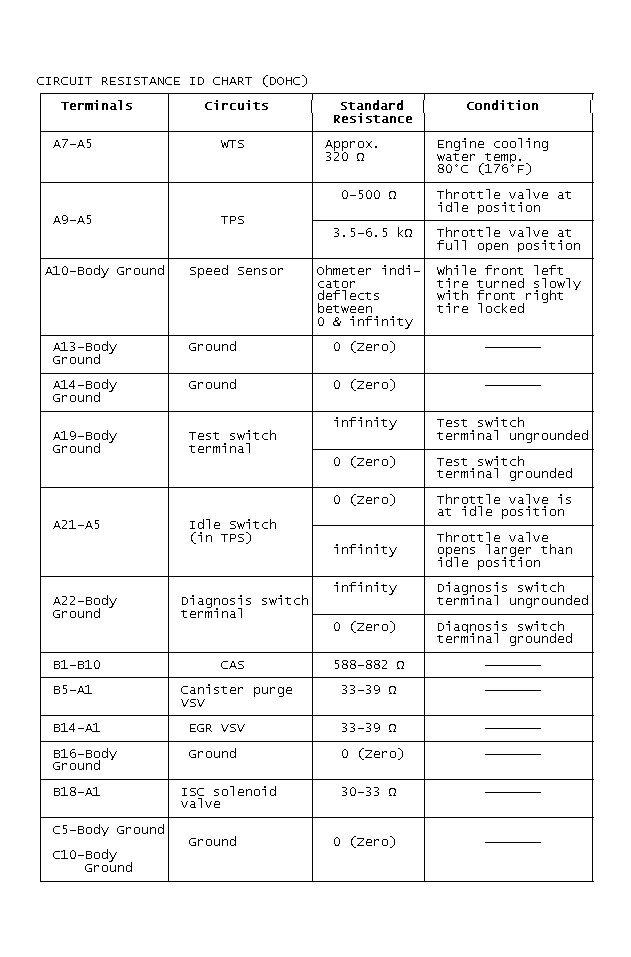

Fig 1: Circuit Resistance Identification Chart (DOHC)
GB0044684

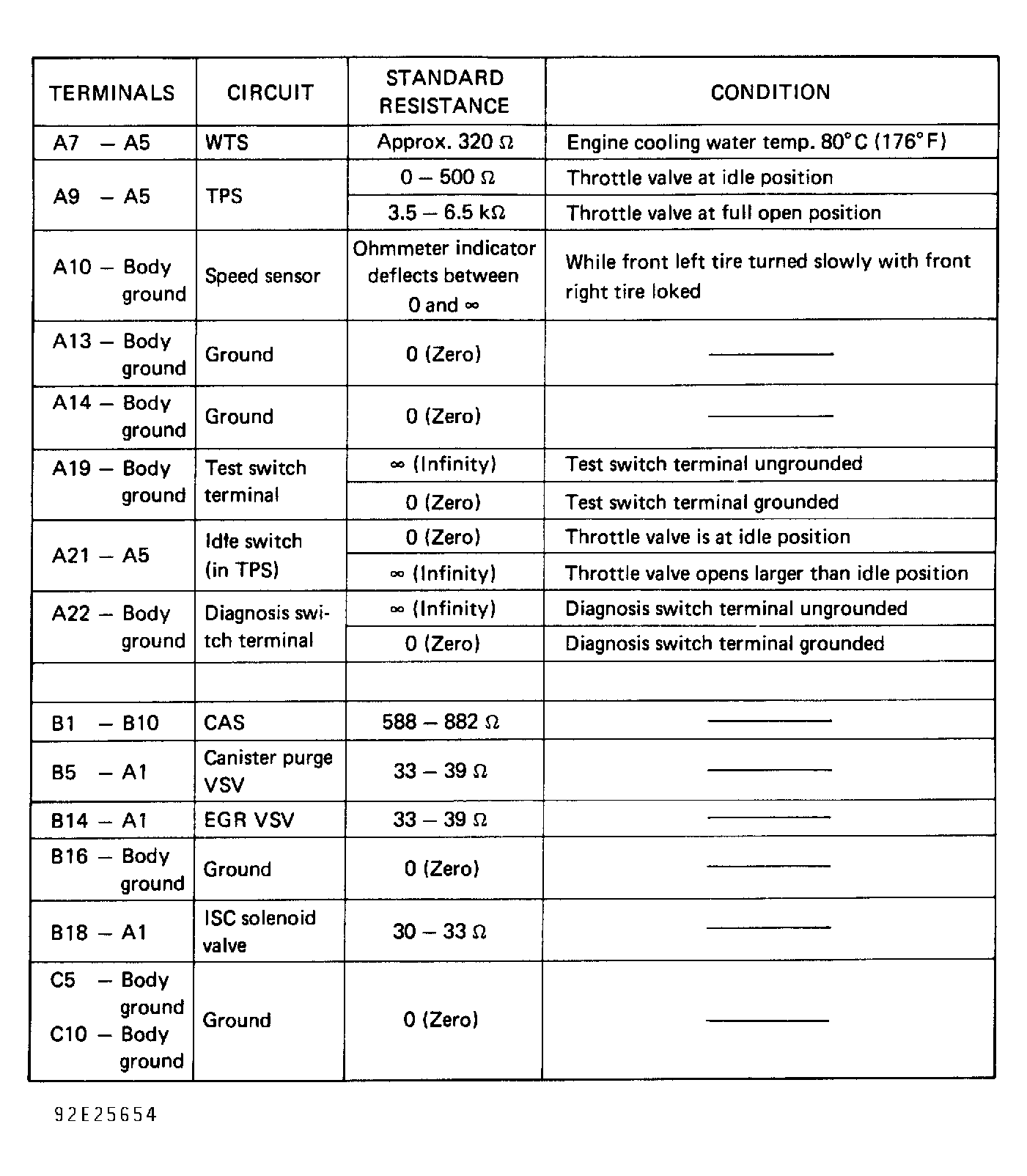

Fig 2: Identifying Circuit Resistance Chart (DOHC)
G92E25654Courtesy of SUZUKI OF AMERICA CORP.

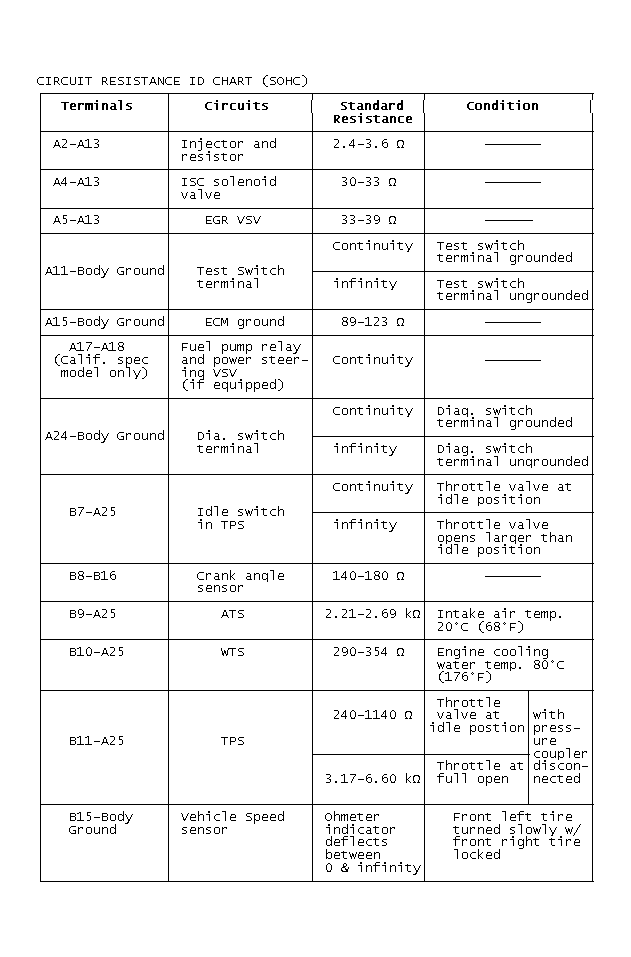

Fig 3: Circuit Resistance IdentificationChart (SOHC)
GB0044685

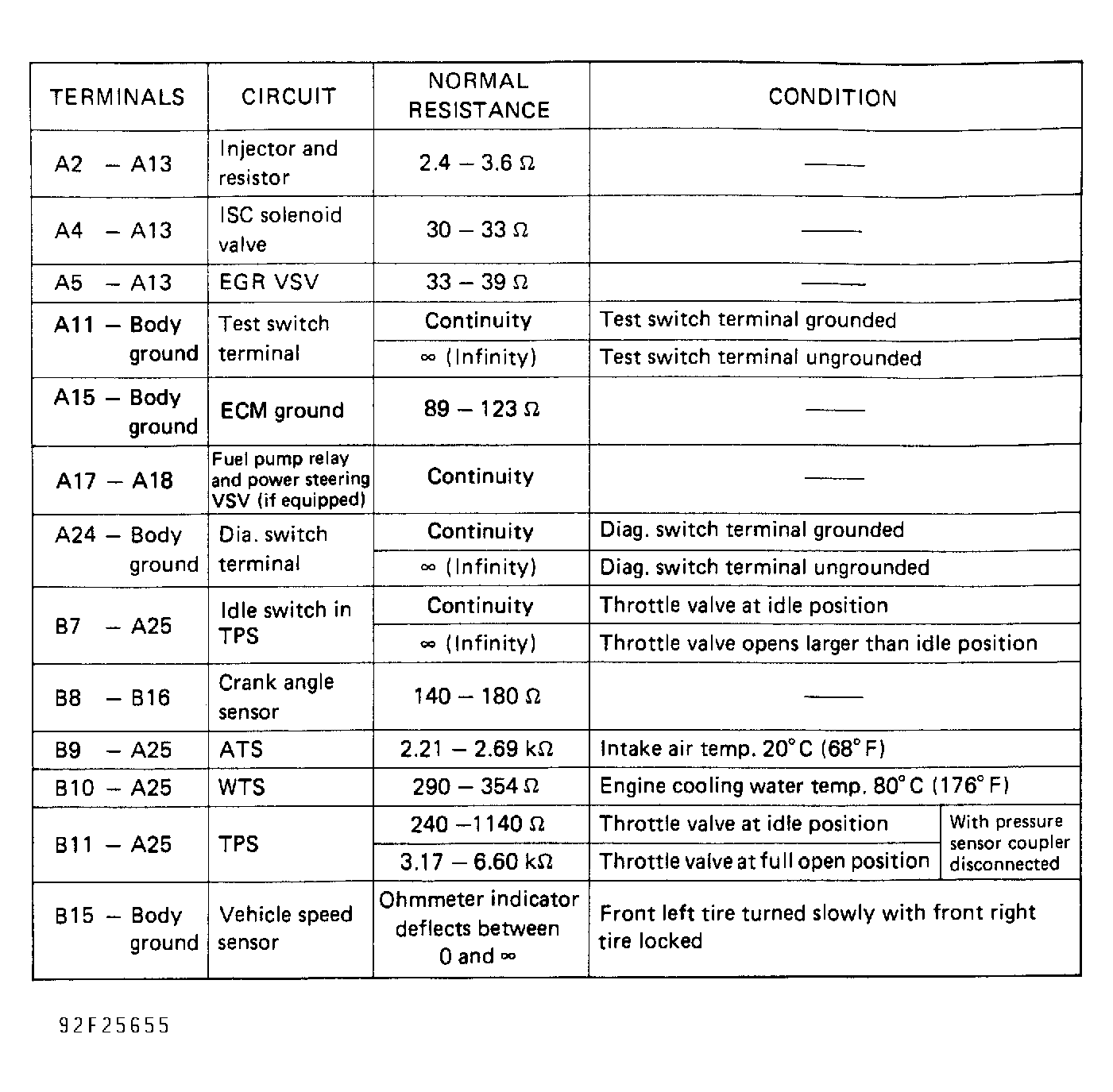

Fig 4: Identifying Circuit Resistance Chart (SOHC)
G92F25655Courtesy of SUZUKI OF AMERICA CORP.
