Ignition Timing

IGNITION TIMING (Degrees BTDC @ RPM) (1)

Application Man. Trans. Auto. Trans.
Samurai (2) 7-9 @ 800 Not Used
Sidekick
MPI (2) 4-6 @ 800 (2) 4-6 @ 800
TBI (2) 7-9 @ 800 (2) 7-9 @ 800
Swift
DOHC (3) 5-7 @ 800-900 (3) 5-7 @ 800-900
SOHC (3) 4-6 @ 750 (3) 4-6 @ 850
(1) See Fig 1 for timing mark location.
(2) With jumper wire installed between "C" and "D" terminals of test connector, located near battery.
(3) With jumper wire installed between "D" and "E" terminals of test connector, located near ignition coil.
NOTE: Ensure ignition timing advances as engine speed increases.

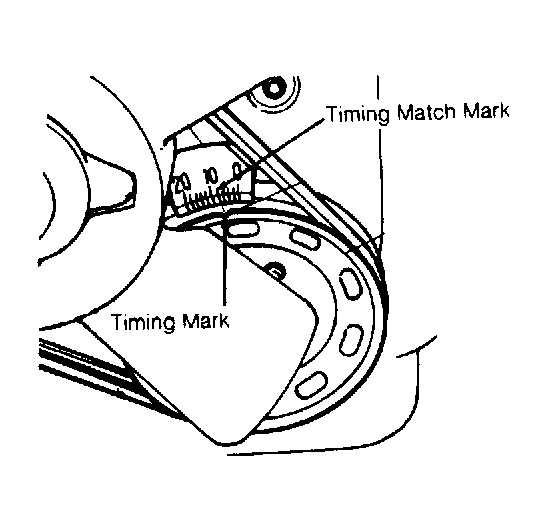

Fig 1: Identifying Ignition Timing Mark (Typical)
G119562Courtesy of SUZUKI OF AMERICA CORP.
