Throttle Position (TP) Sensor

THROTTLE POSITION (TP) SENSOR RESISTANCE ⁽¹⁾

Application

Ohms

Between Terminals "A" & "C"

100-100,000

Between Terminals "A" & "D"

2870-5330

⁽¹⁾	See Fig 1 for terminal identification.

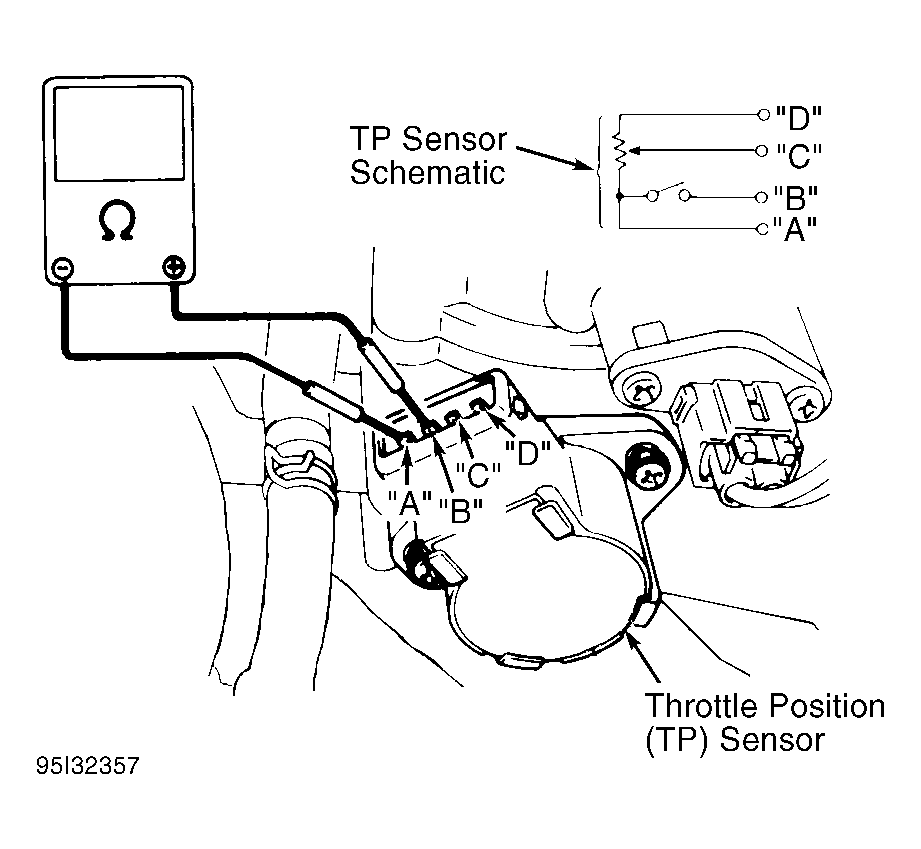

Fig 1: Identifying Throttle Position (TP) Sensor Terminals

Courtesy of SUZUKI OF AMERICA CORP.
