Ignition System Components Location

NOTE: For other components not found in this figure, refer to COMPONENT LOCATIONS , System & Component Testing.

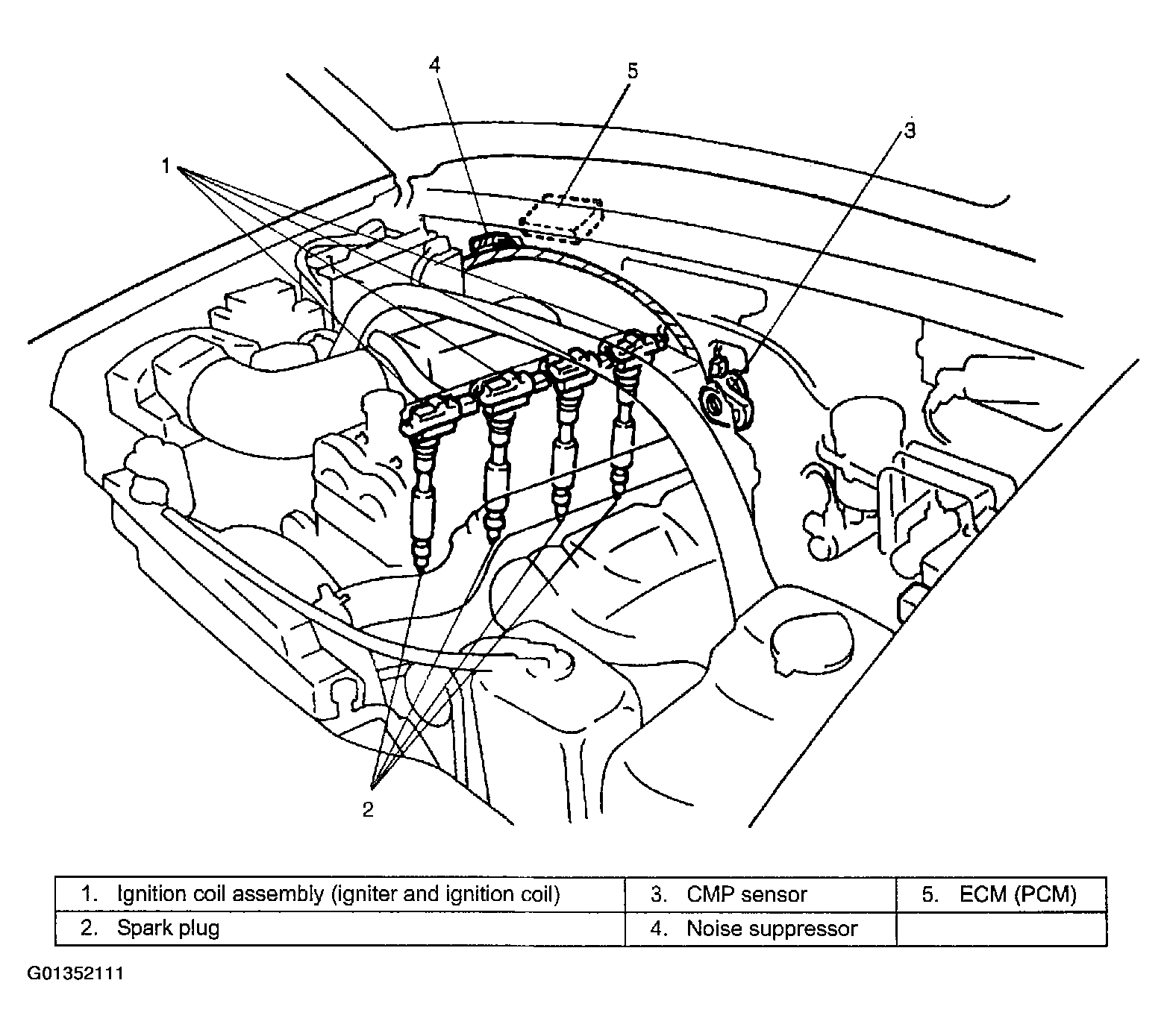

Fig 1: Locating Ignition System Components

Courtesy of SUZUKI OF AMERICA CORP.
