Camshaft Position (CMP) Sensor Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the CMP sensor.

    Tighten

    1. Tighten the camshaft position (CMP) sensor retaining bolt to 10-14 N.m (89-124 lb-in).

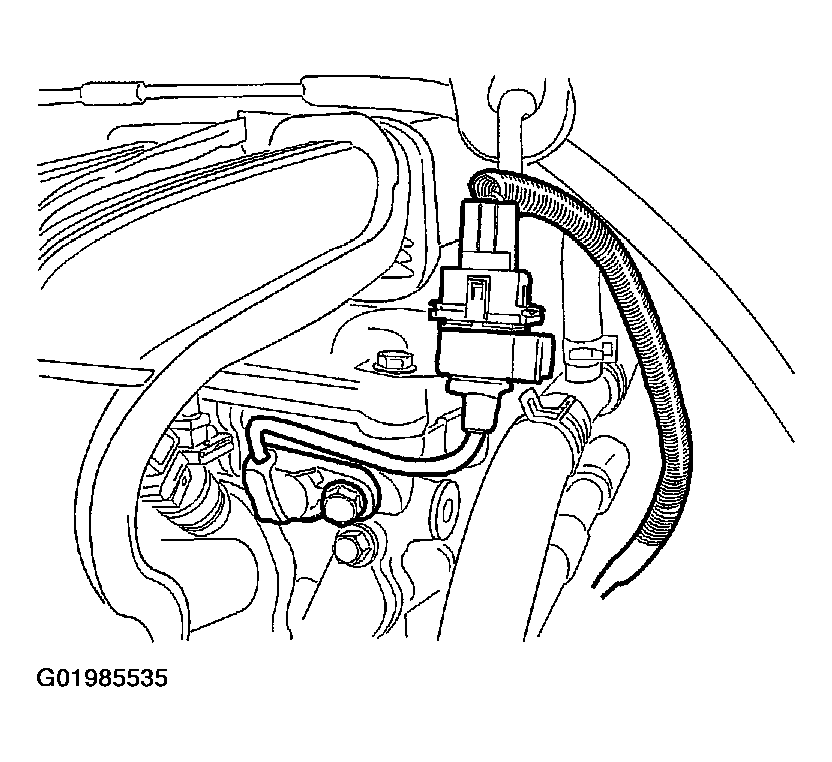

Fig 1: Installing CMP Sensor
G01985535Courtesy of SUZUKI OF AMERICA CORP.
