Manifold Absolute Pressure (MAP) Sensor Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the MAP sensor.

    Tighten

    1. Tighten the manifold absolute pressure (MAP) sensor to 6-10 N.m (53-89 lb-in).

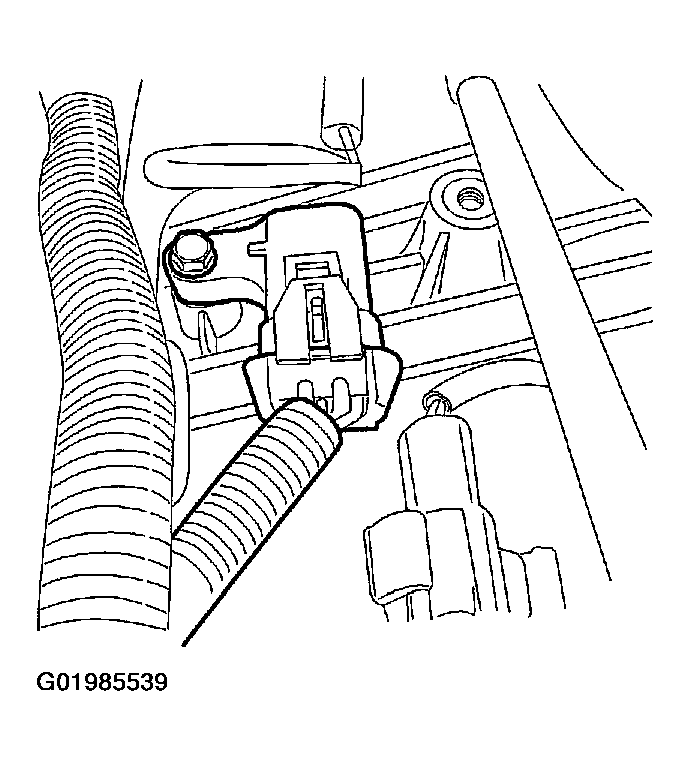

Fig 1: Installing MAP Sensor
G01985539Courtesy of SUZUKI OF AMERICA CORP.
