Intake Air Temperature Sensor Removal and Installation: Installation

  1. Install the IAT sensor into the air intake tube.
  2. Connect the IAT connector.
  3. Connect the negative battery cable.

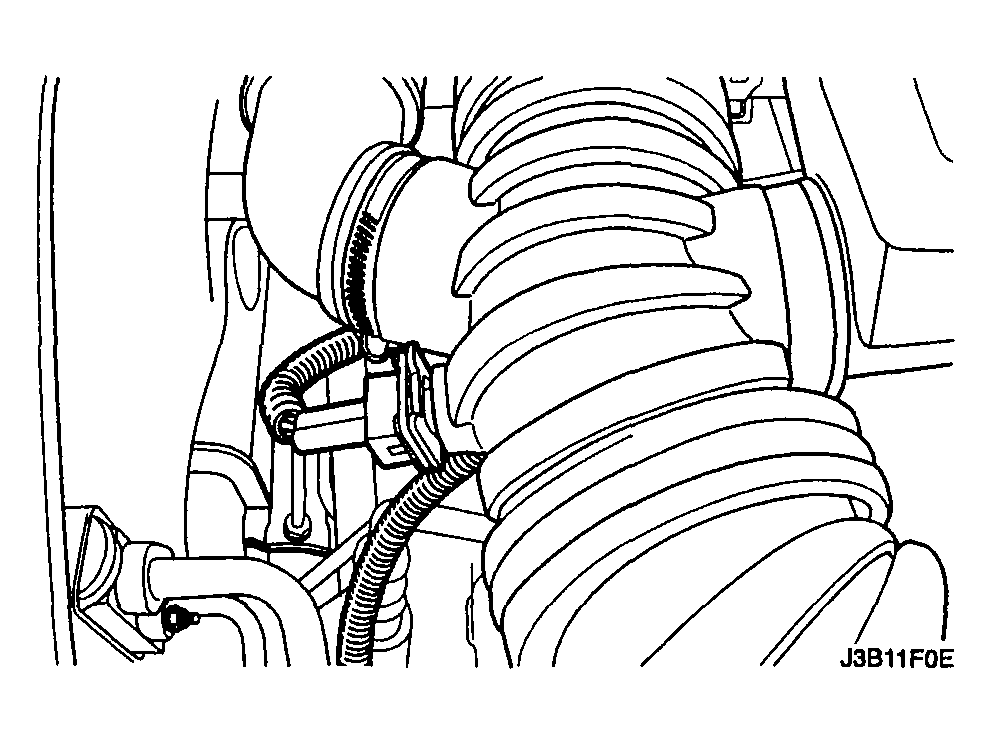

    Fig 1: Installing IAT Sensor Into Air Intake Tube
    G04102615Courtesy of SUZUKI OF AMERICA CORP.
