Throttle Position Sensor Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Remove the air intake tube and resonator.
  3. Disconnect the throttle position (TP) sensor connector.
  4. Remove the TP sensor retaining bolts and the TP sensor.

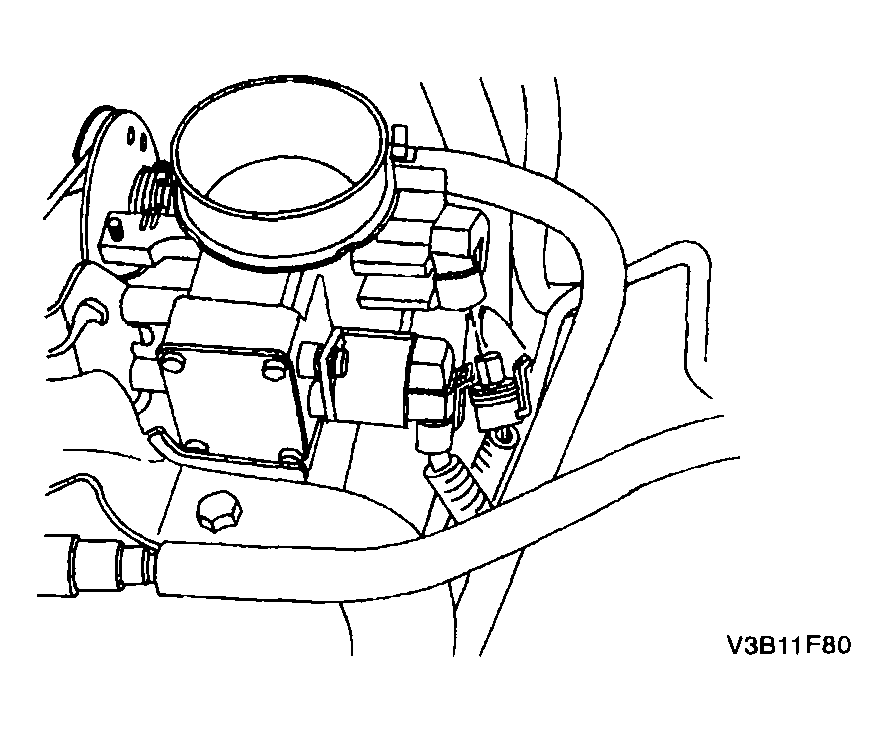

    Fig 1: Disconnecting Throttle Position Sensor Connector
    G04102607Courtesy of SUZUKI OF AMERICA CORP.
