Home >> Suzuki >> 2006 >> Verona Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Introduction >> Diagnostic Information and Procedures >> Malfunction Indicator Lamp On Steady >> Notes

Malfunction Indicator Lamp On Steady: Notes

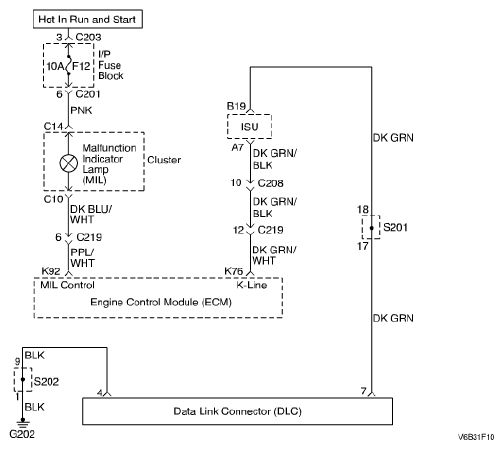

Fig 1: Malfunction Indicator Lamp On Steady - Wiring Diagram

G04718633

Courtesy of SUZUKI OF AMERICA CORP.
