Engine Control System - Introduction
>>
Diagnostic Information and Procedures
>>
No Malfunction Indicator Lamp
>>
Notes
No Malfunction Indicator Lamp: Notes

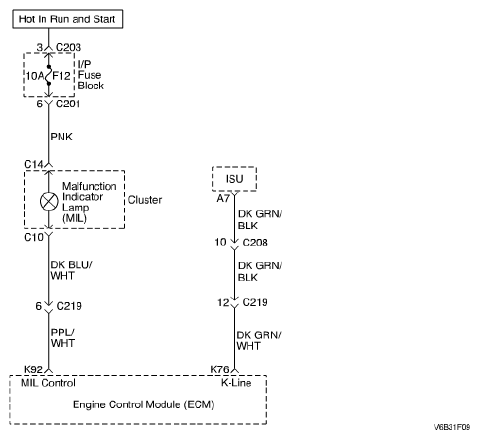

Fig 1: No Malfunction Indicator Lamp - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
