Camshaft Position (CMP) Sensor Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the CMP sensor.

    Tighten:

    Tighten the camshaft position (CMP) sensor retaining bolt to 10 - 14 N.m (89 - 124 lb-in.).

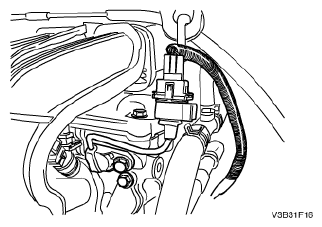

    Fig 1: Identifying CMP Sensor
    G04718823Courtesy of SUZUKI OF AMERICA CORP.
