VIS Solenoid Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the VIS solenoid connector.
  3. Disconnect the vacuum hose from the VIS solenoid.
  4. Remove the VIS solenoid.

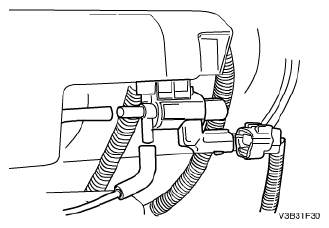

    Fig 1: Removing VIS Solenoid
    G04718839Courtesy of SUZUKI OF AMERICA CORP.
