Engine Cooling Fan Circuit Check - Dual Fan: Notes

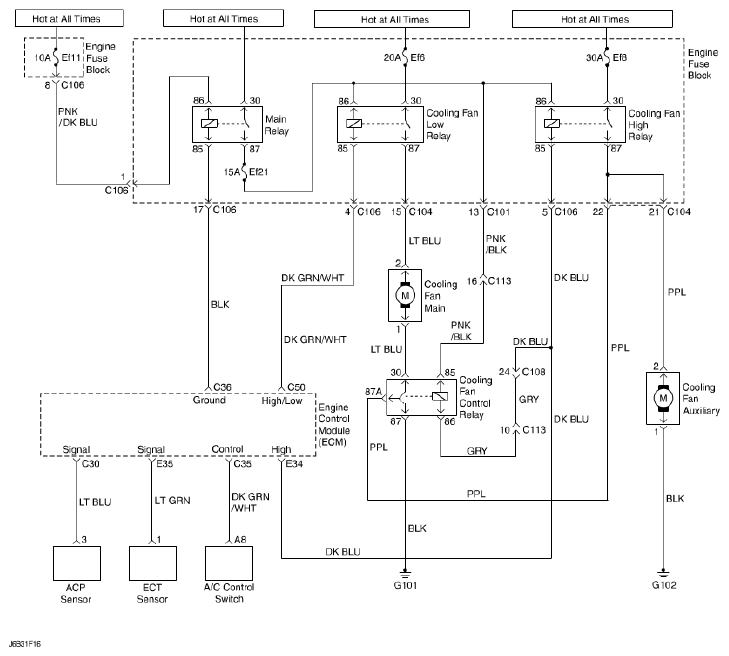

Fig 1: Engine Cooling Fan - Circuit Diagram

G04817367

Courtesy of SUZUKI OF AMERICA CORP.
