Camshaft Position (CMP) Sensor Inspection
>>
Visual Check
Visual Check
Check that O-ring is free from damage.
Check that end face of sensor and signal rotor tooth are free from any metal particles and damage.

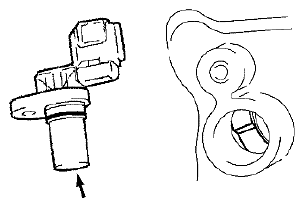

Fig 1: Identifying Camshaft Position (CMP) Sensor
Courtesy of SUZUKI OF AMERICA CORP.
