Relay Control System: System Diagram

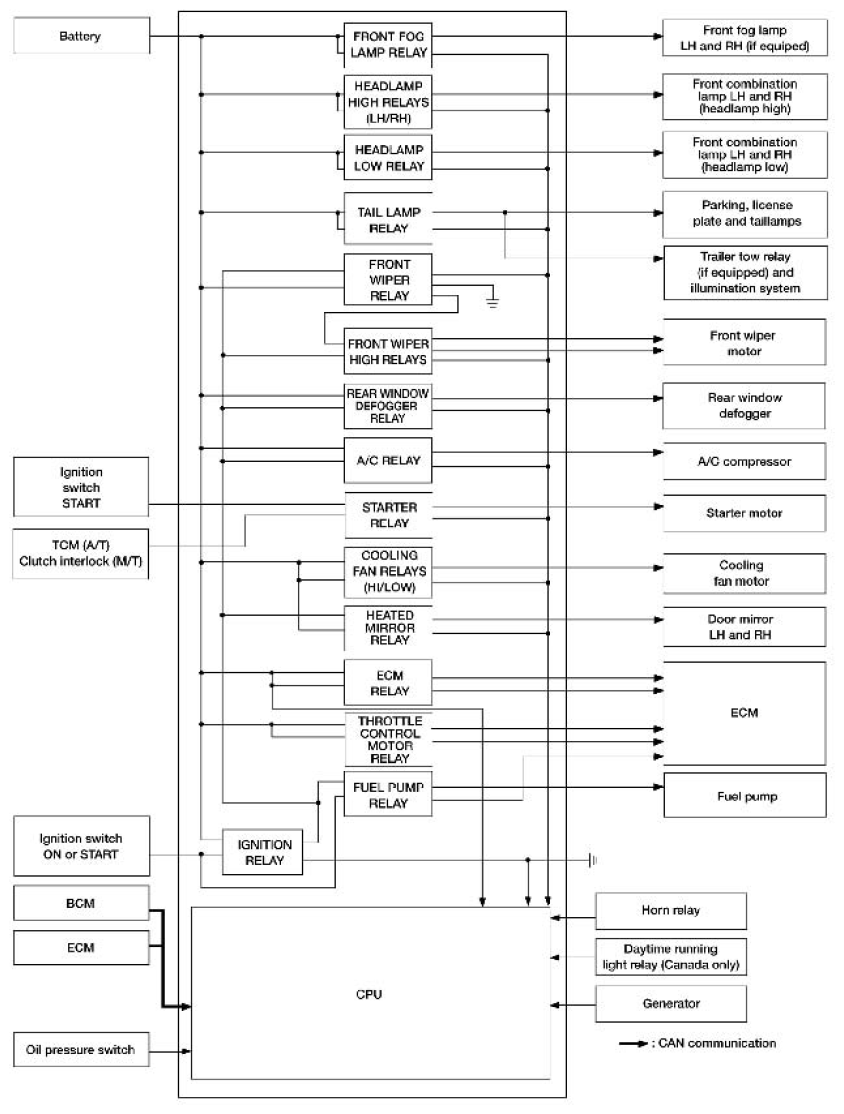

Fig 1: Relay Control System - System Diagram

G06446772

Courtesy of SUZUKI OF AMERICA CORP.
