Fuel Tank: Removal and Installation: Notes

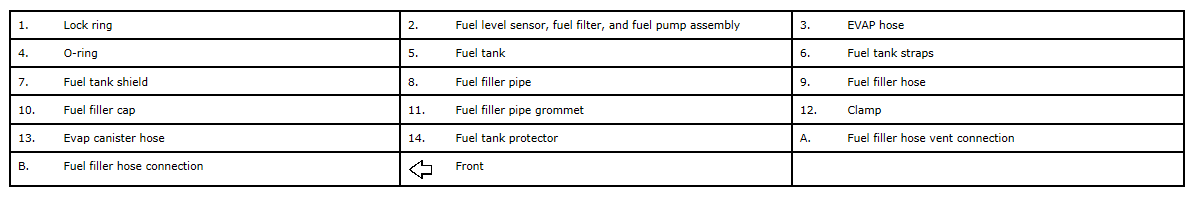

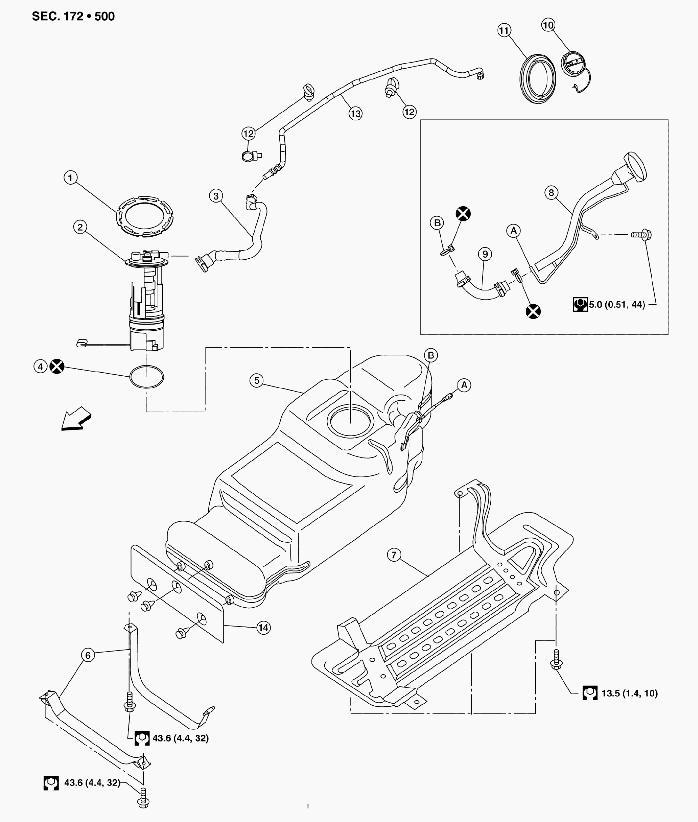

Fig 1: Identifying Fuel Tank Removal And Installation (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Fuel Tank Removal And Installation (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
