Home >> Toyota >> 1985 >> 4Runner Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> TCCS System >> Testing >> Trouble Code 10 Blinks - Main Relay & Circuit

Trouble Code 10 Blinks - Main Relay & Circuit

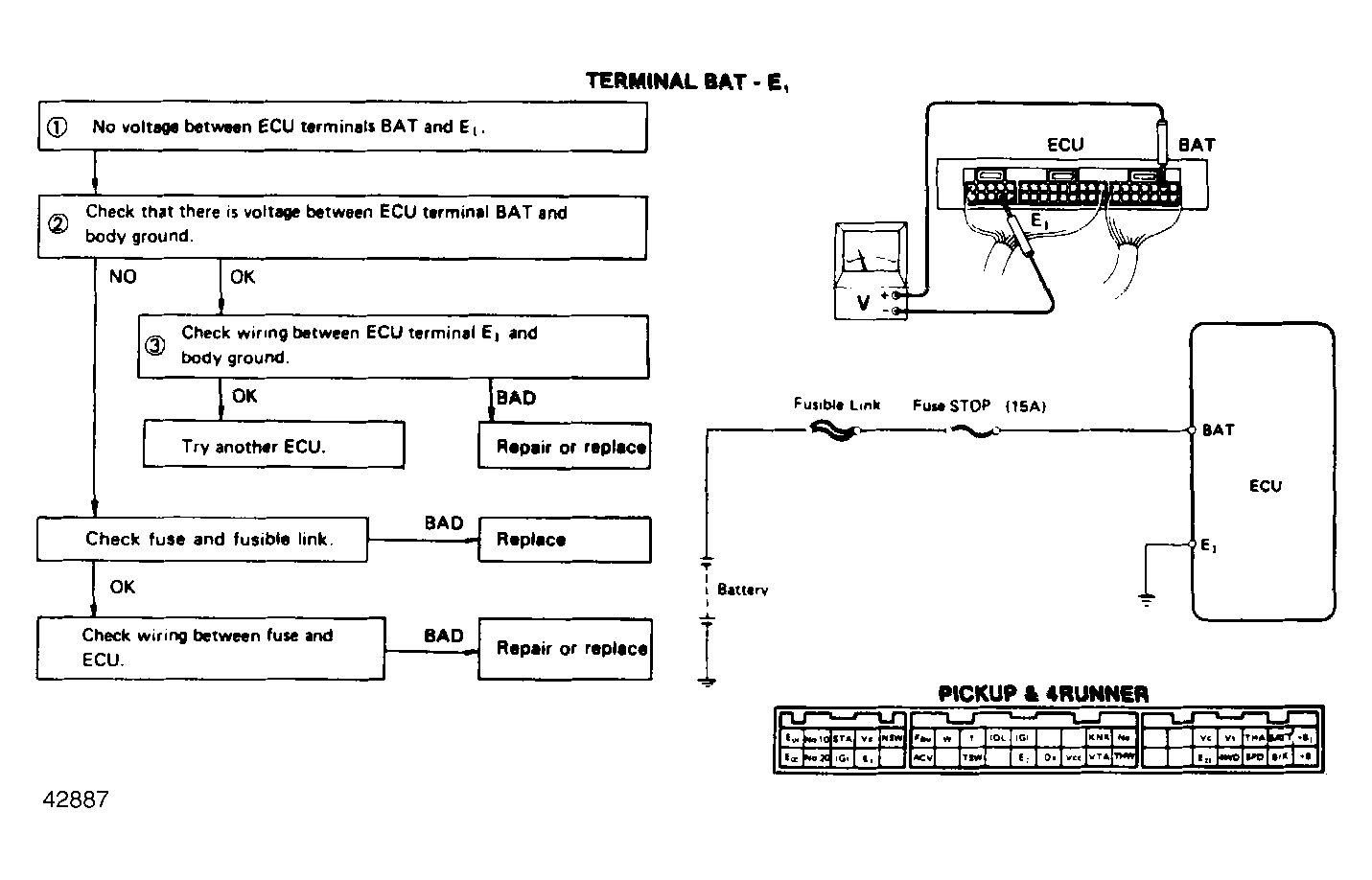

Fig 1: Terminal BAT - E1
G42887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
