Trouble Code 3 Blinks - IGNITOR & Circuit
Trouble Code 3 Blinks - IGNITOR & Circuit

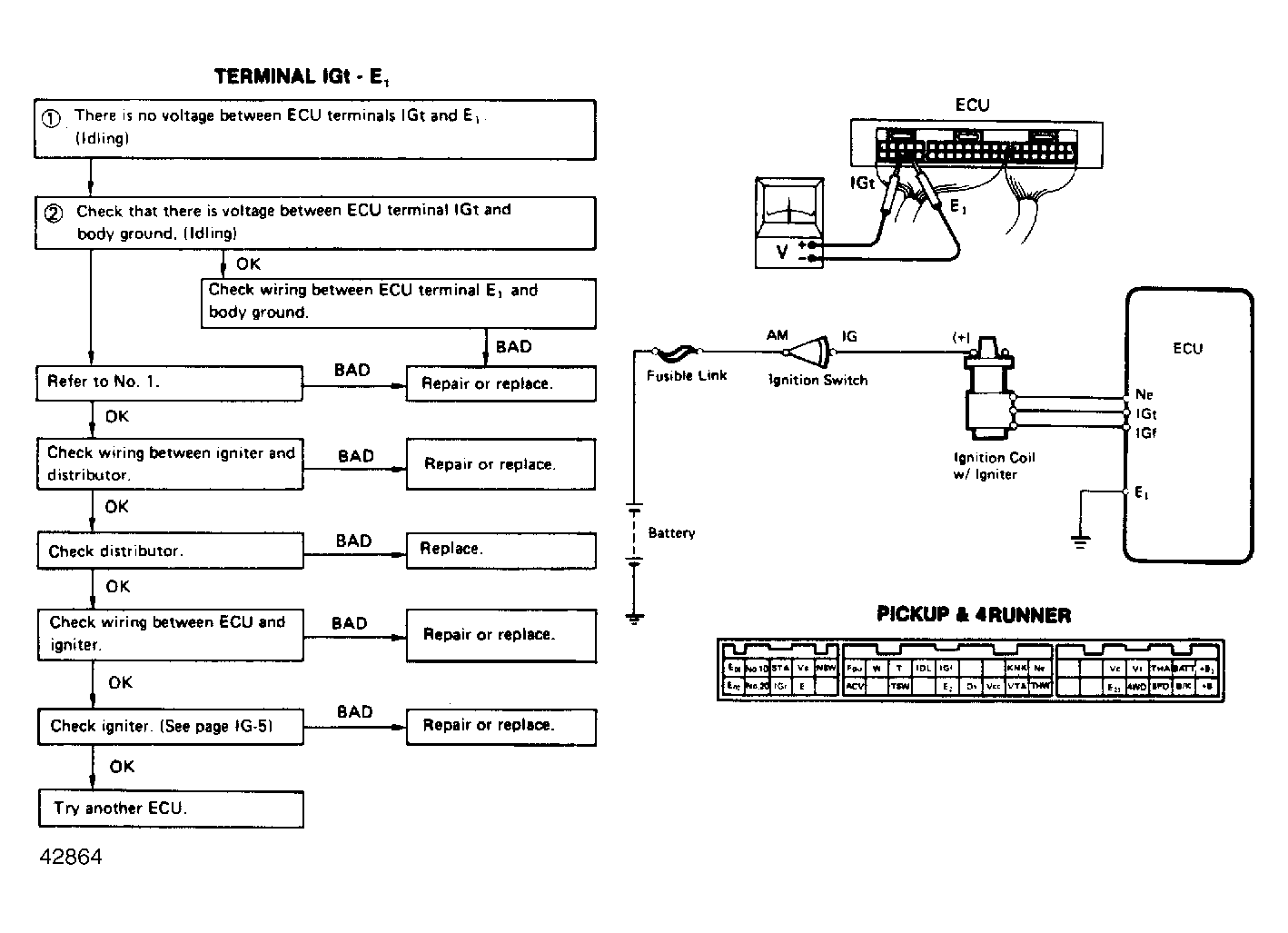

Fig 1: Terminal IGt - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
