Trouble Code 4 - Coolant Temp. Sensor & Circuit

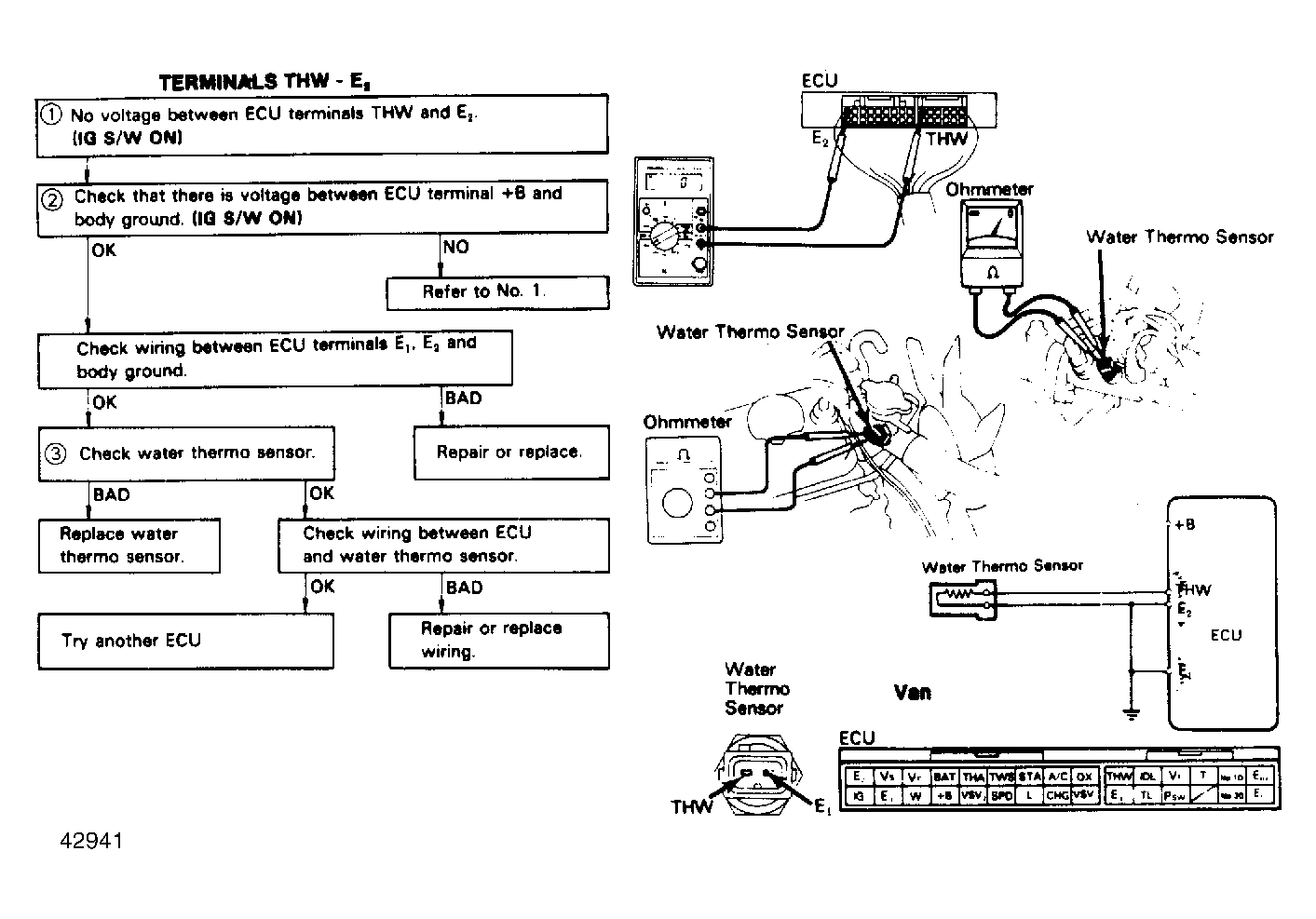

Fig 1: Terminals THW - E2

G42941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
