Trouble Code 7 Blinks - Throttle Position Sensor & Circuit

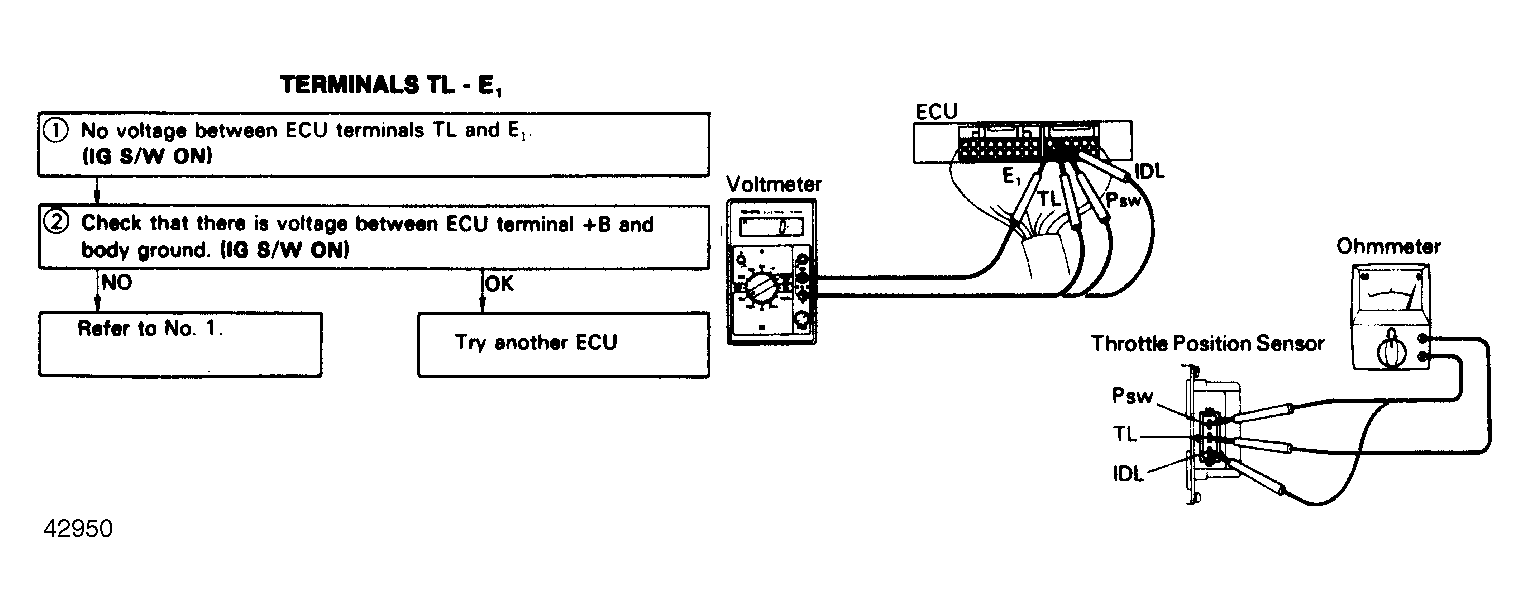

Fig 1: Terminals TL - E1
G42950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

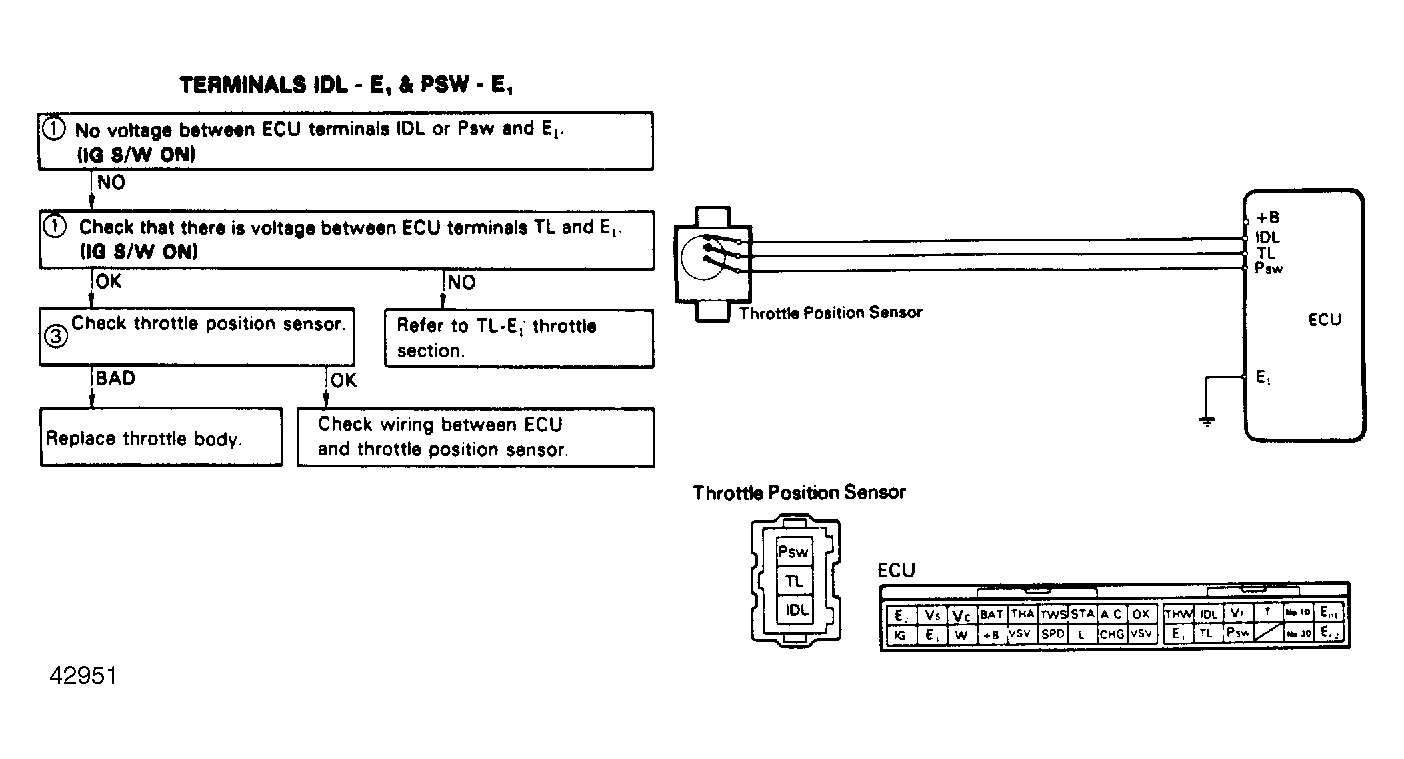

Fig 2: Terminals IDL - E1, PSW - E1
G42951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
