Wiring Diagrams

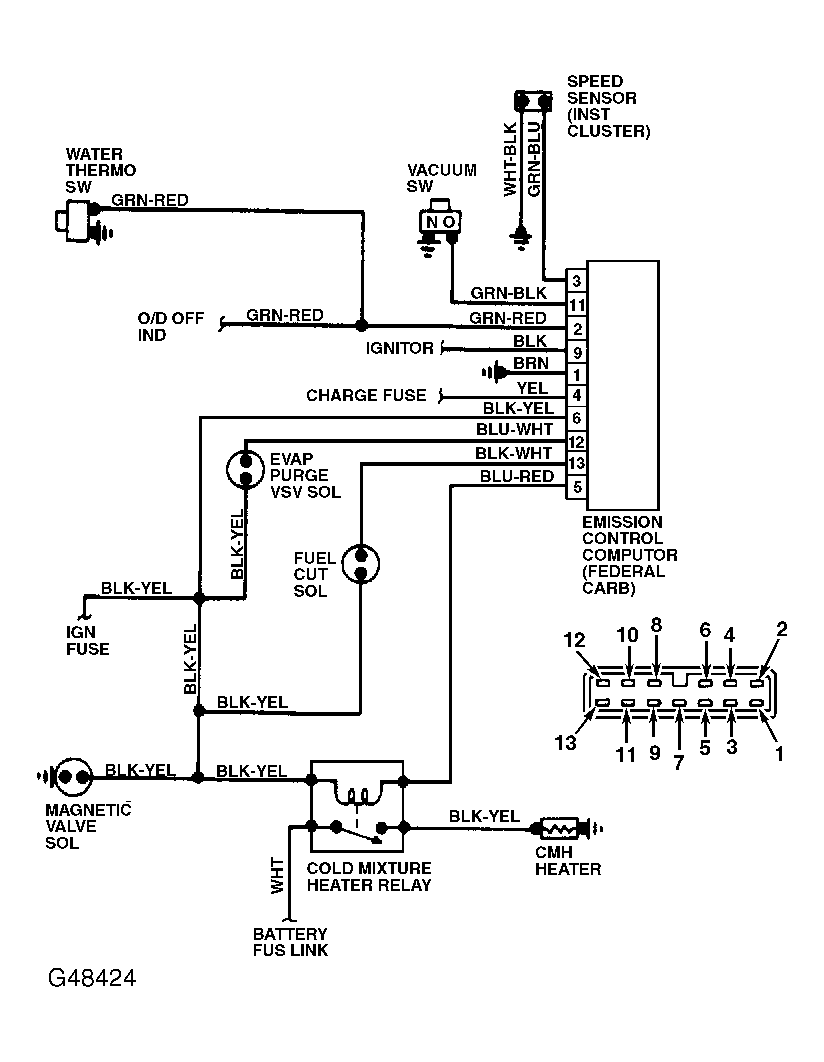

Fig 1: Pickup & 4Runner Computer Controlled Emission System Wiring Diagram (Federal)
G48424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

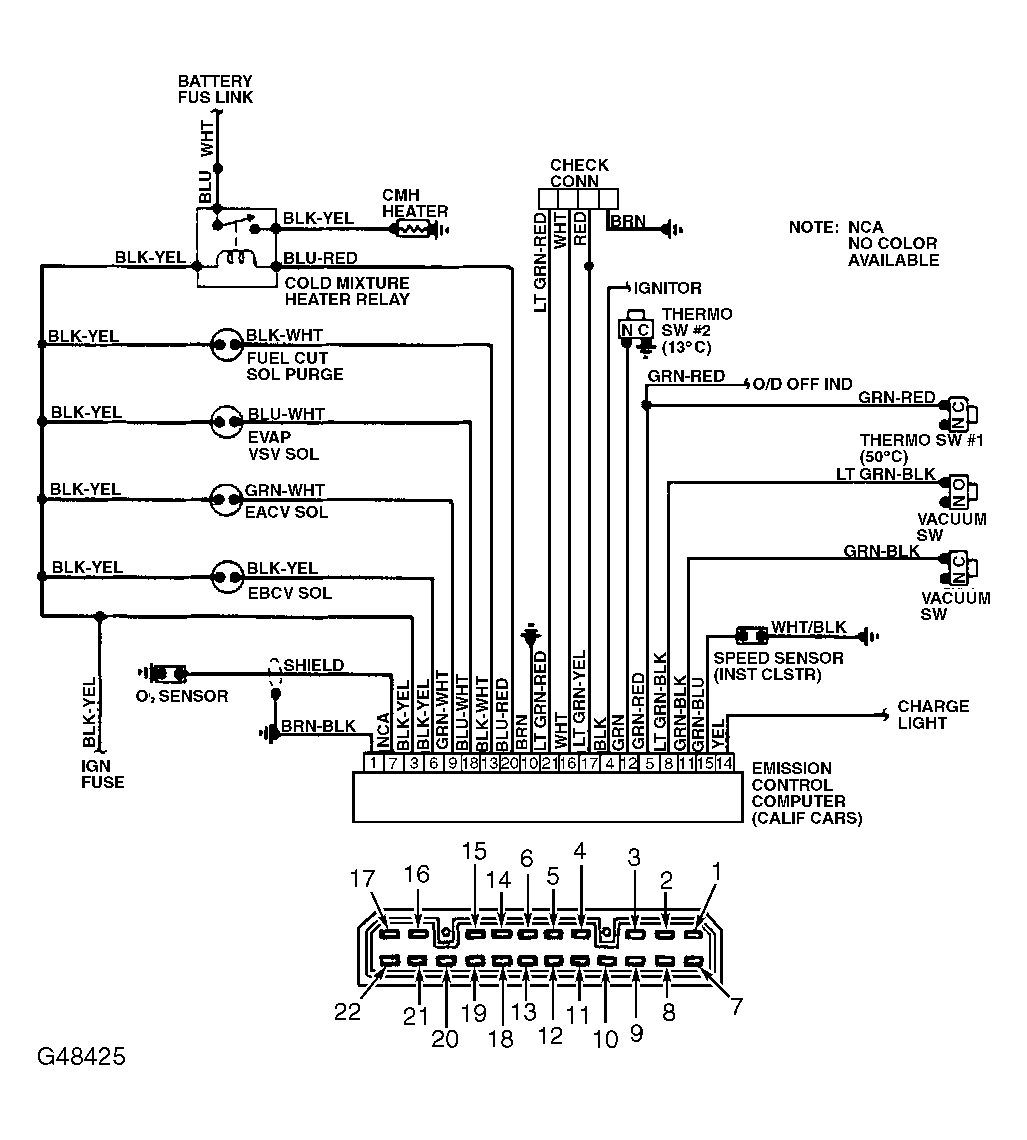

Fig 2: Pickup & 4Runner Computer Controlled Emission System Wiring Diagram (California)
G48425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
