Trouble Code 5 Oxygen Sensor
Trouble Code 5 Oxygen Sensor

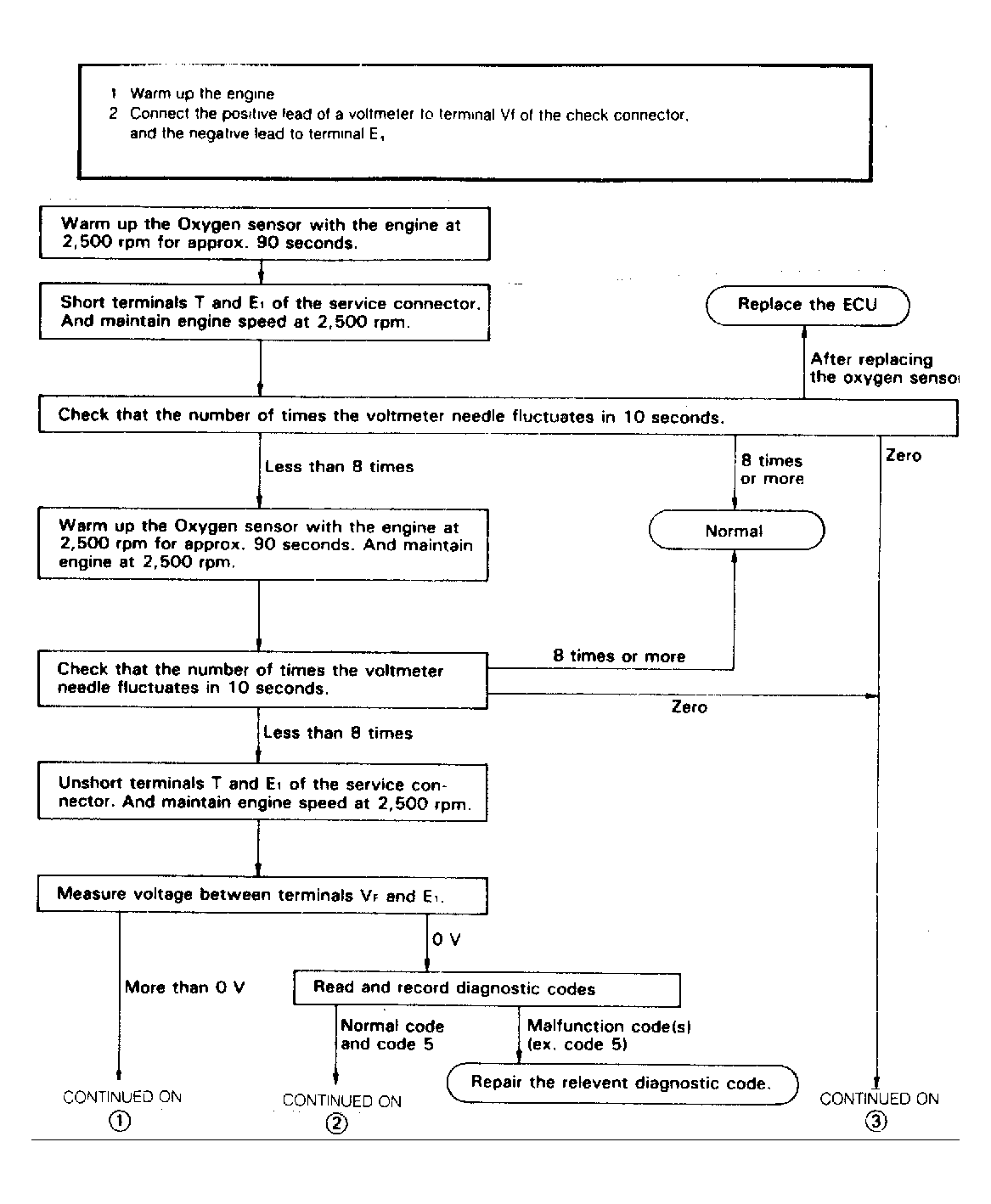

Fig 1: Trouble Code 5, Oxygen Sensor (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

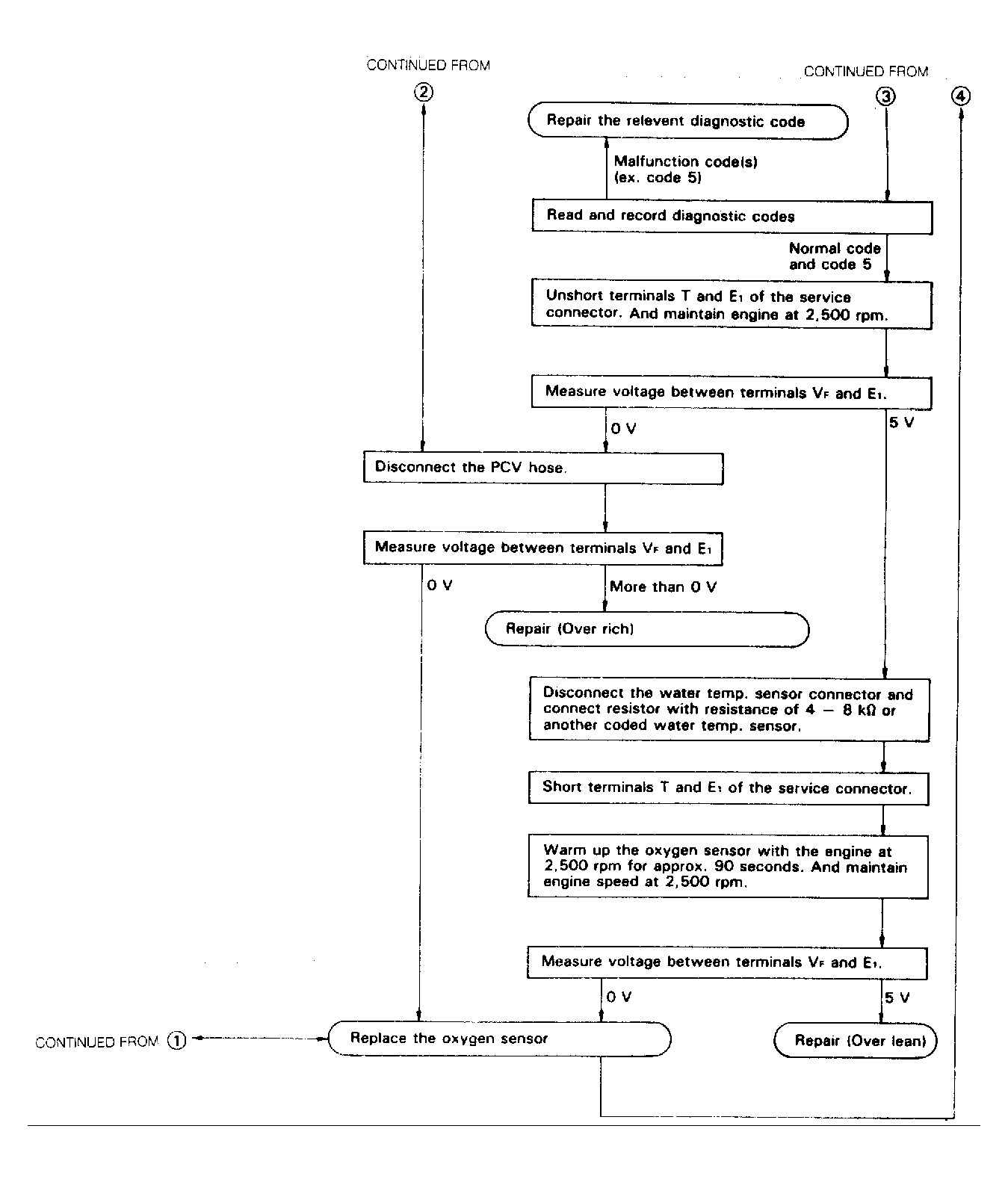

Fig 2: Trouble Code 5, Oxygen Sensor (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
