A/C Compressor

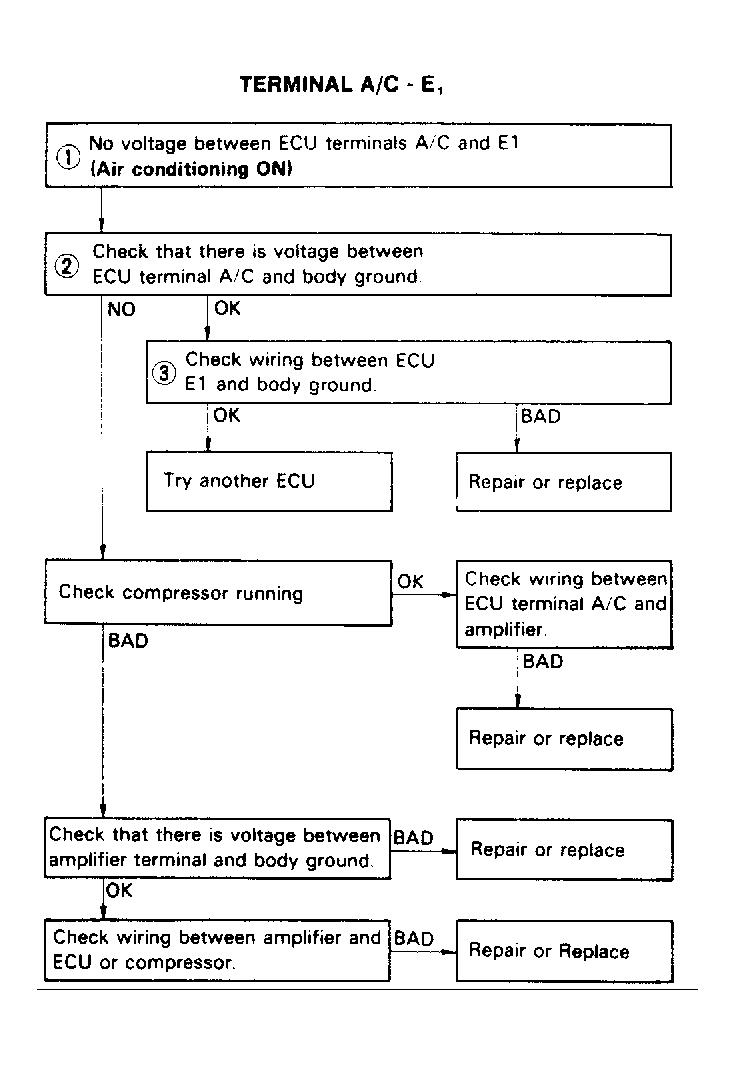

Fig 1: Terminal A/C - E(1) Part 1 of 3
G62023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

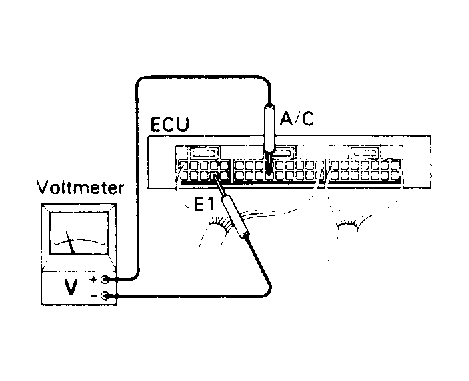

Fig 2: Wiring Diagram Part 2 of 3
G62024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

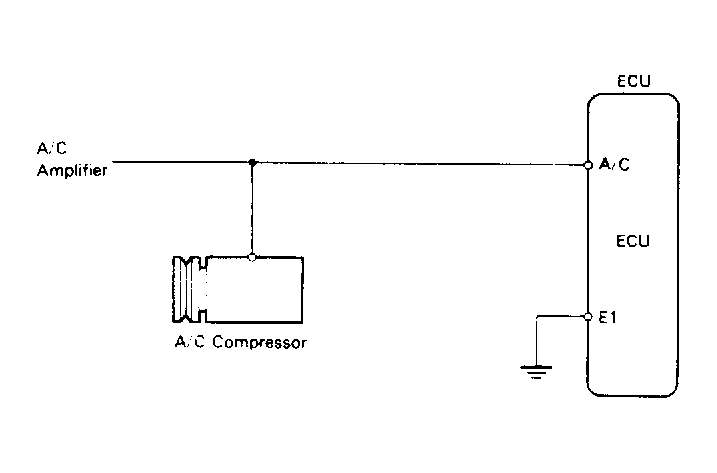

Fig 3: Wiring Diagram Part 3 of 3
G62025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
