Trouble Code 10 Ignition & Starter
Trouble Code 10 Ignition & Starter

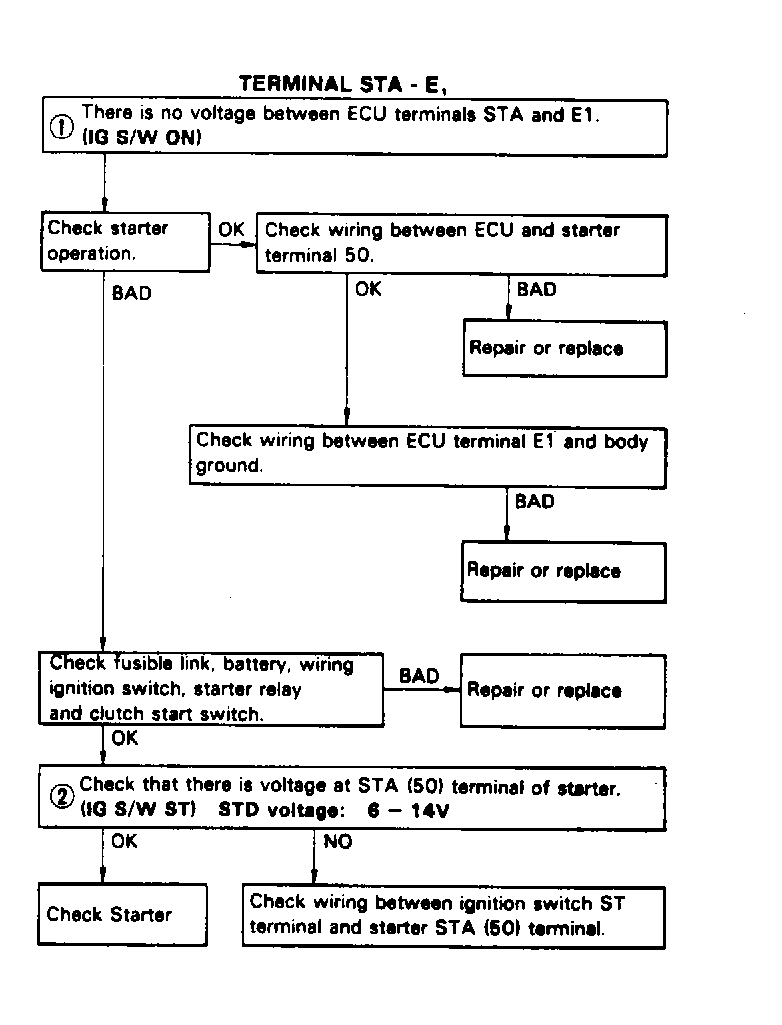

Fig 1: Terminal STA - E(1) Part 1 of 4
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

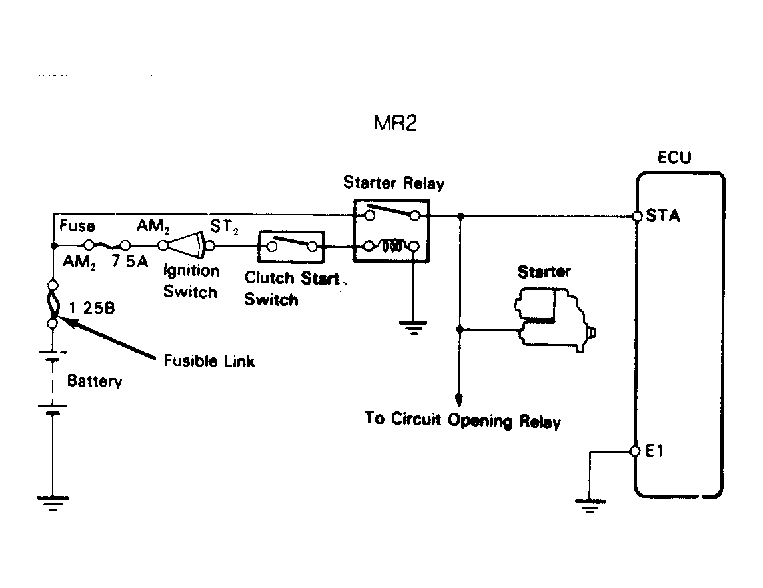

Fig 2: Wiring Diagram Part 2 of 4
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Wiring Diagram Part 3 of 4
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Wiring Diagram Part 4 of 4
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

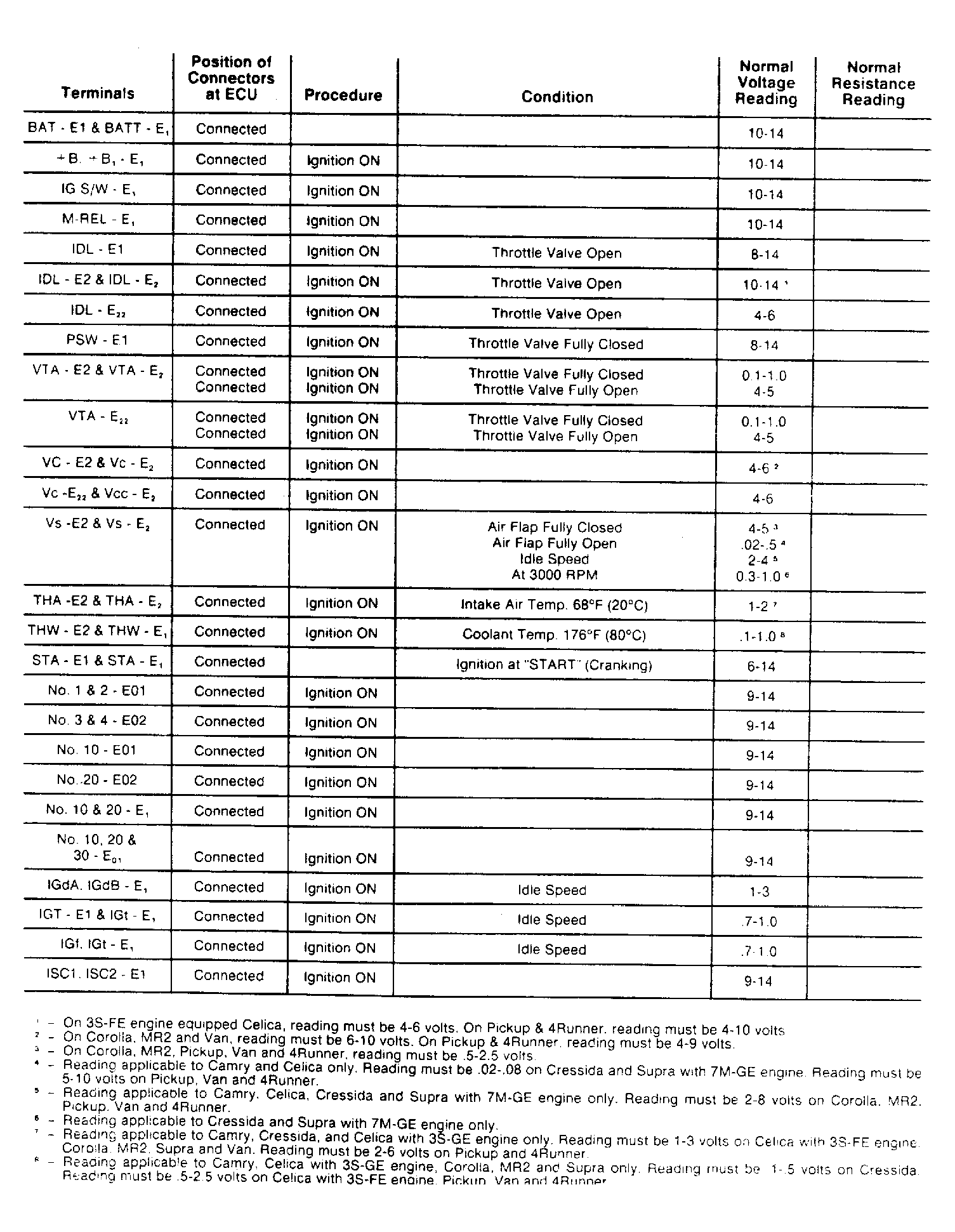

Fig 5: TCCS Voltage & Resistance Specification Chart Part 1 of 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

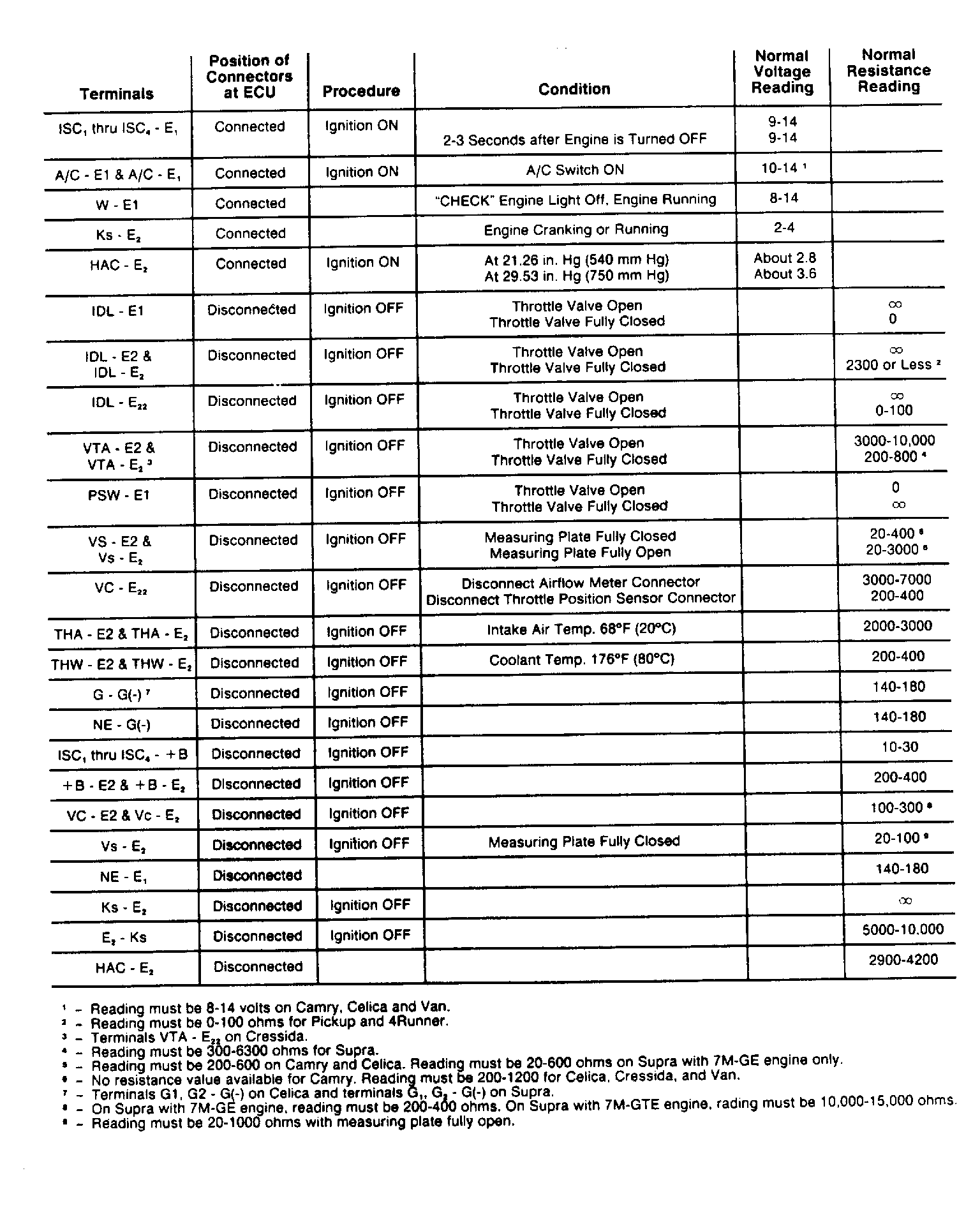

Fig 6: TCCS Voltage & Resistance Specification Chart Part 2 of 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
