Trouble Code 8 Intake Air Temperature Sensor & Circuit

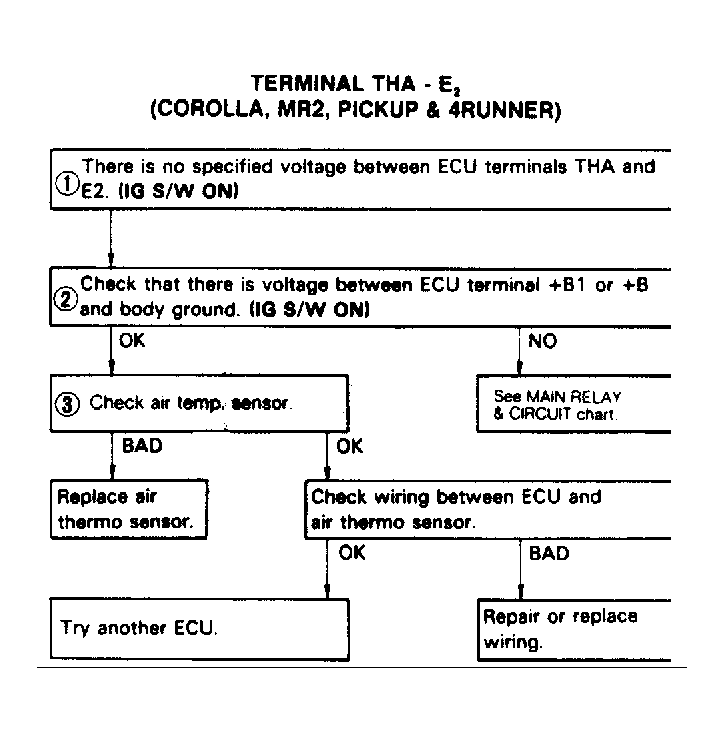

Fig 1: Terminals THA - E(2) Part 1 of 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

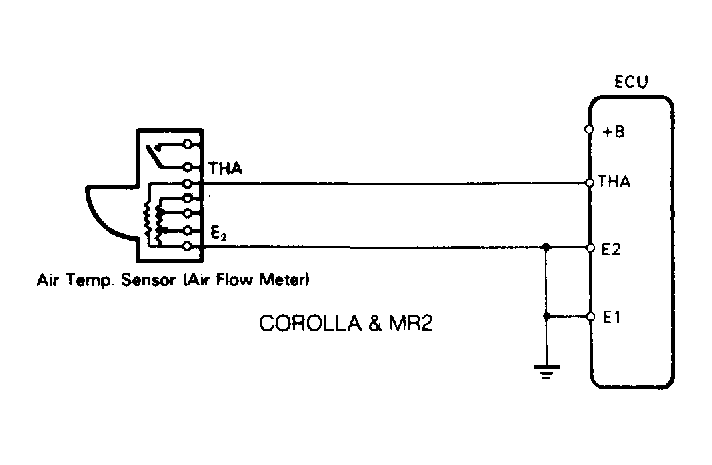

Fig 2: Wiring Diagram Part 2 of 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
