Diagnostic Circuit Check

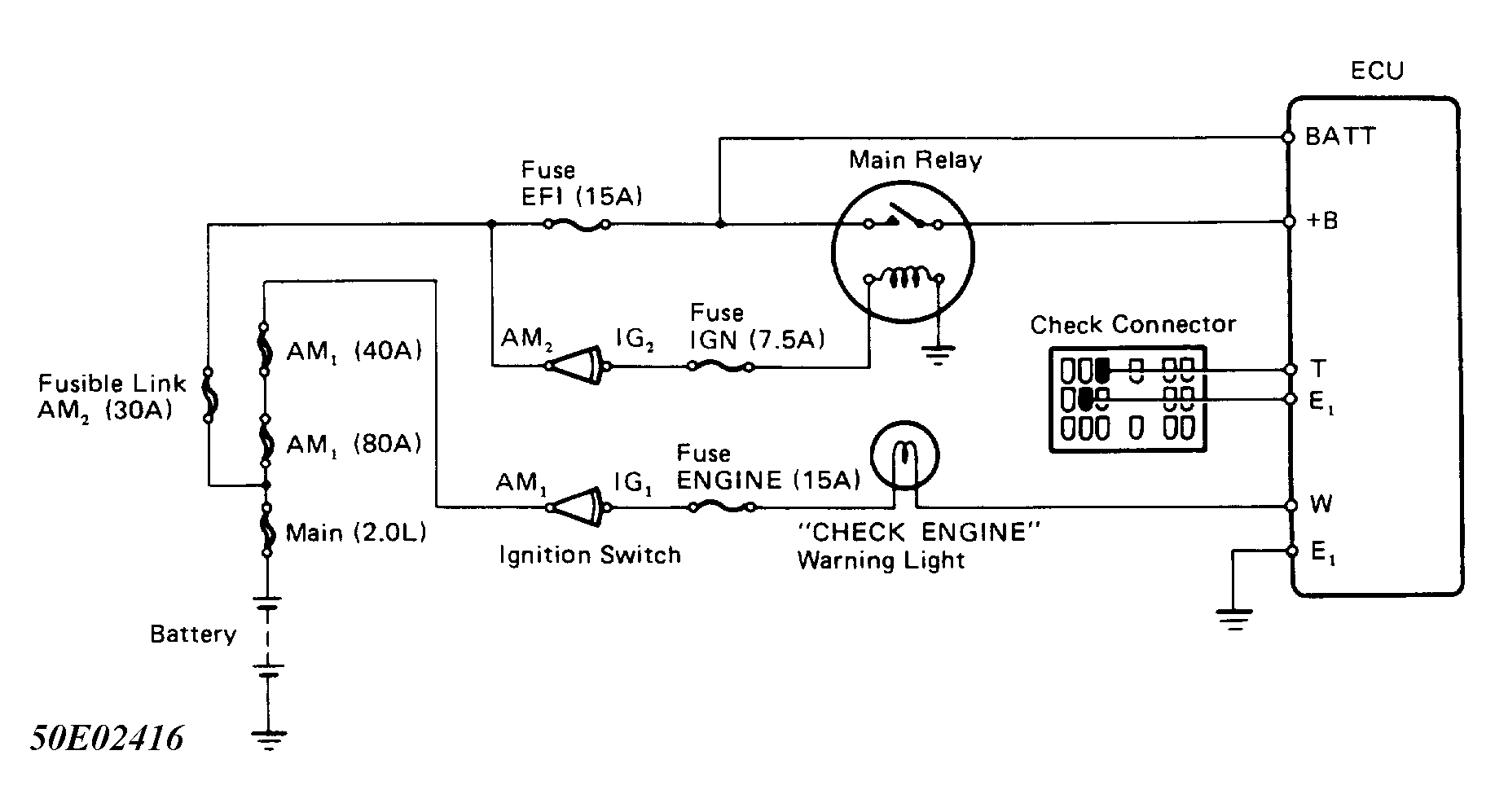

Fig 1: Diagnostic Circuit Check, Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

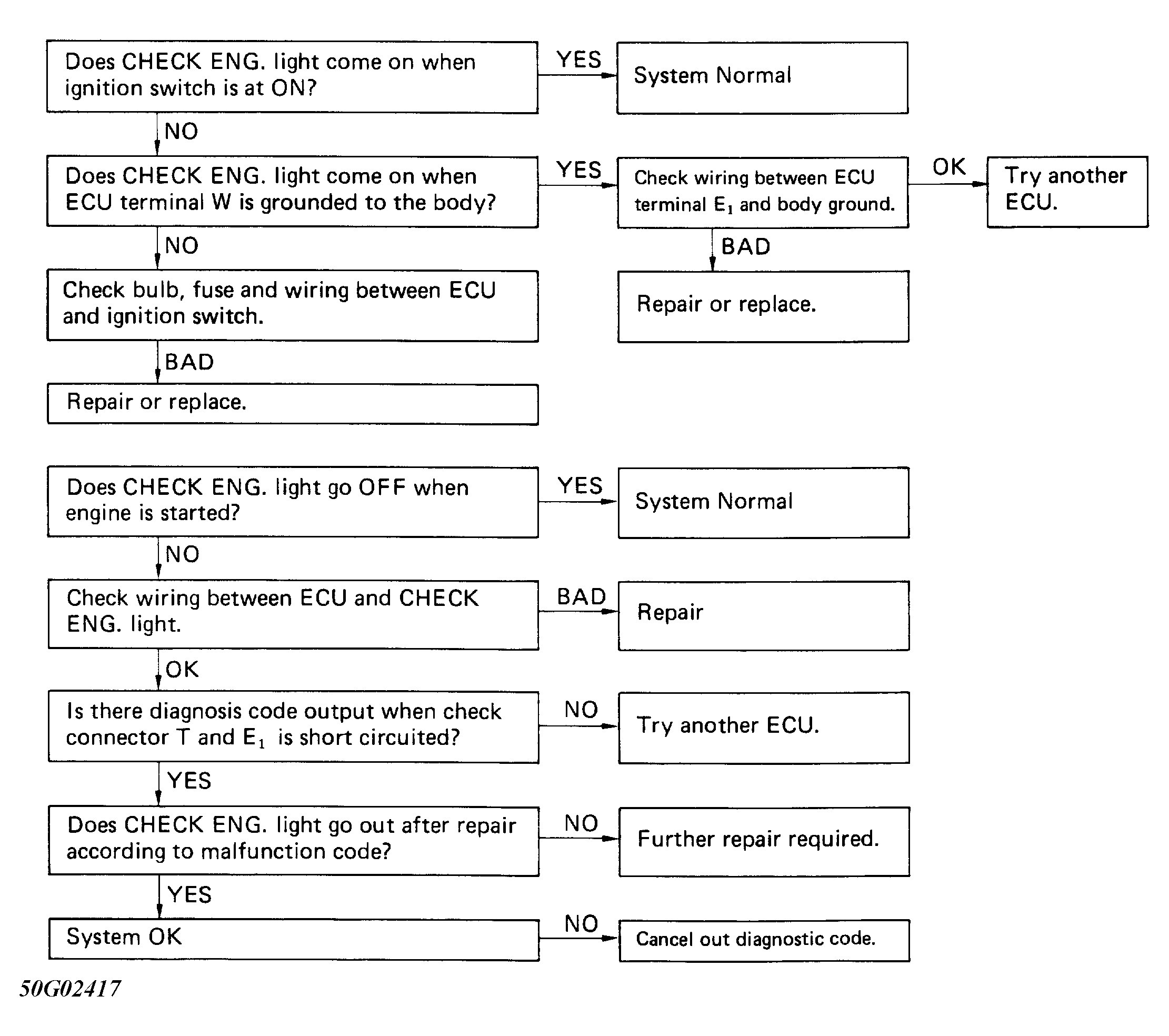

Fig 2: Diagnostic Circuit Check, Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
