No. 11 Test, "Check Engine" Light Test

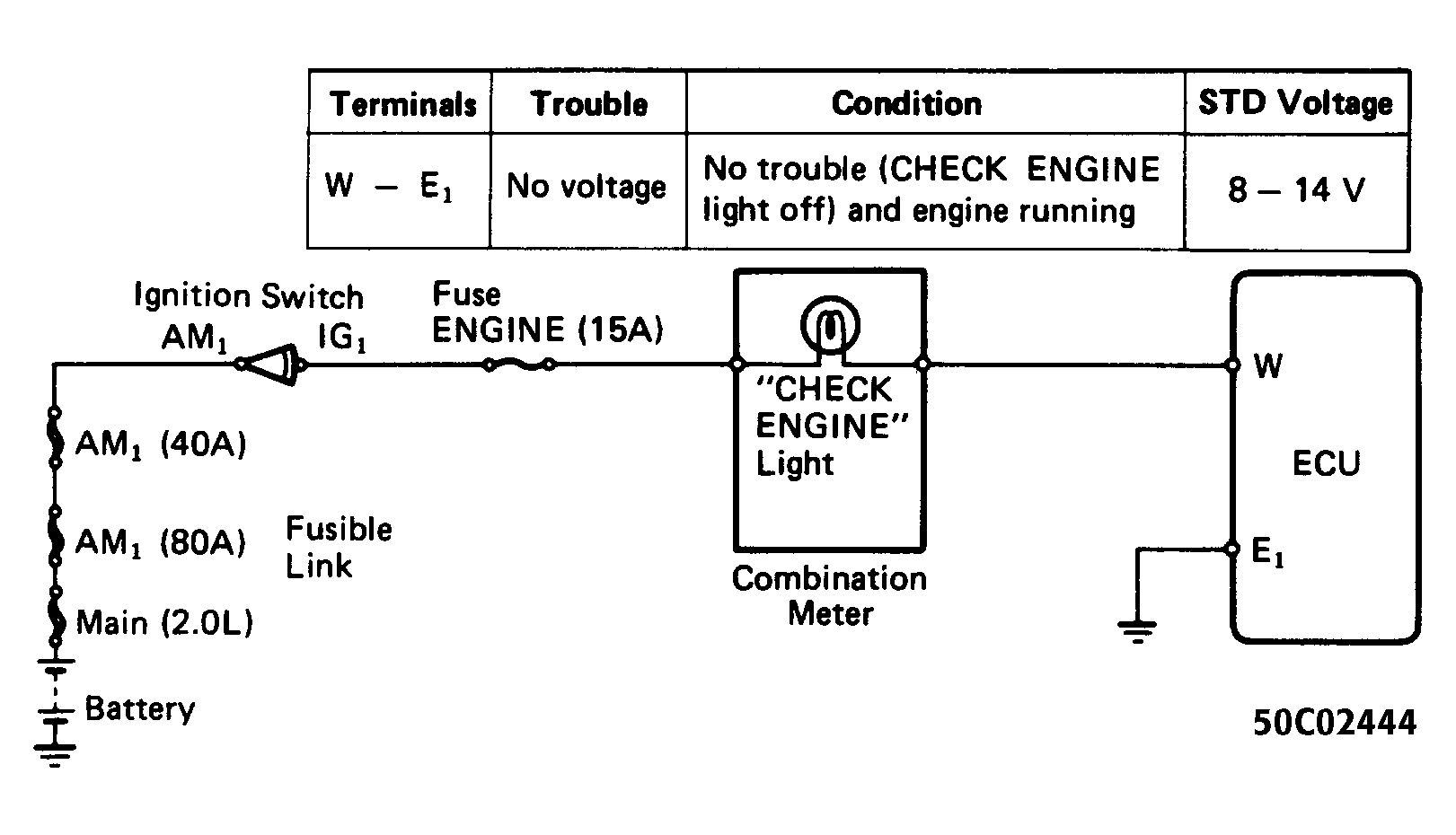

Fig 1: No. 11 Test Schematic, "CHECK ENGINE" Light Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

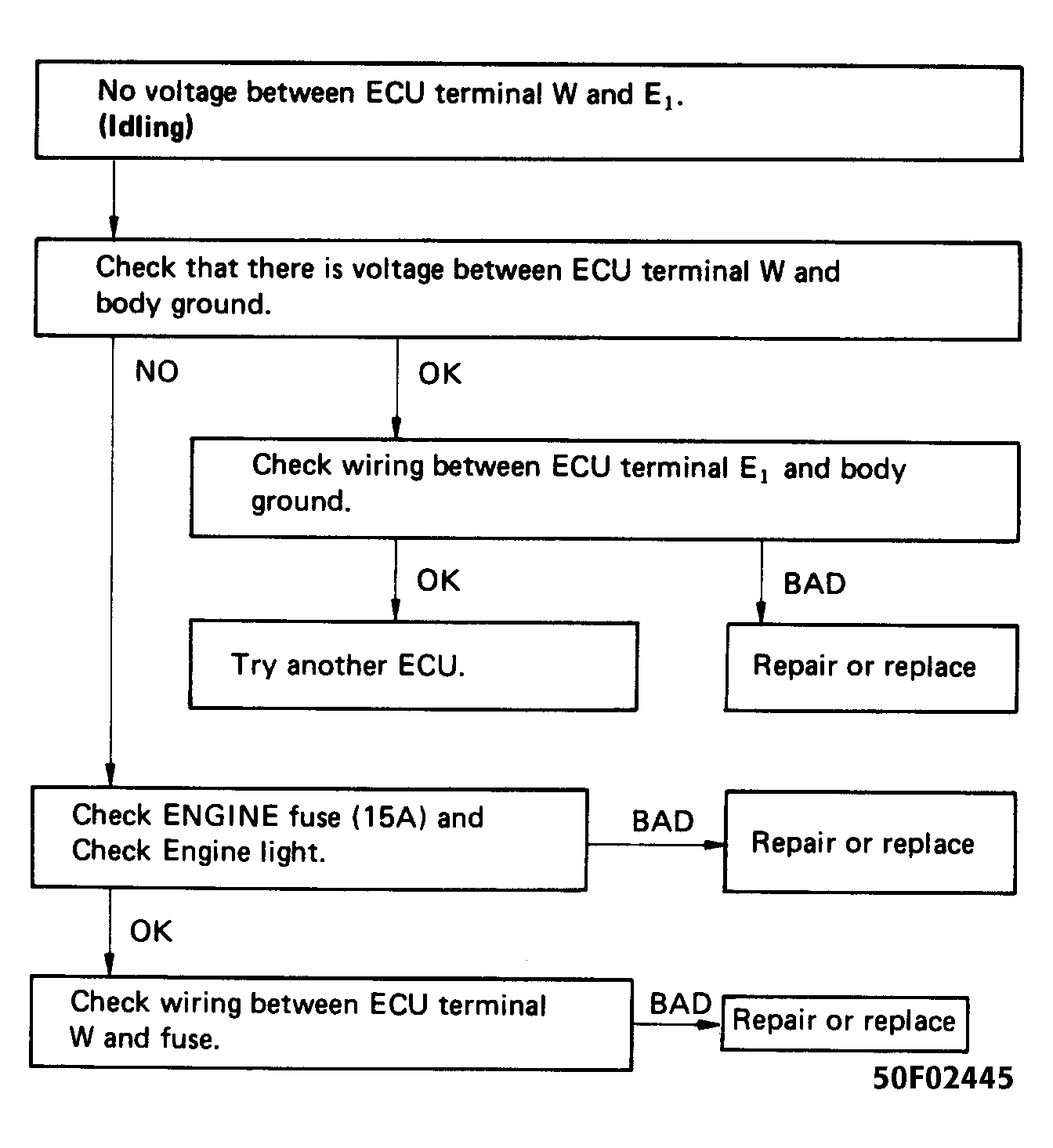

Fig 2: No. 11 Test Flow Chart, "CHECK ENGINE" Light Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
