Ecu Connector Identification

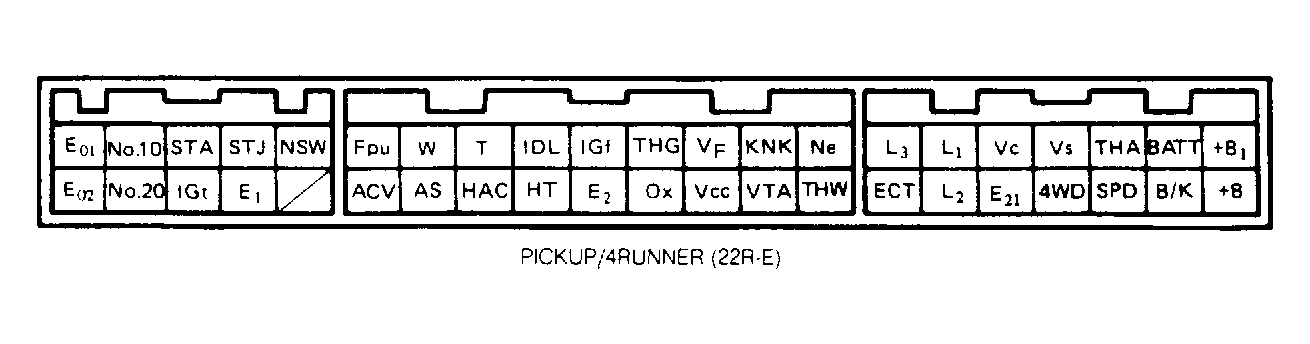

Fig 1: 22R-E ECU Connector Pin Identification
G95242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

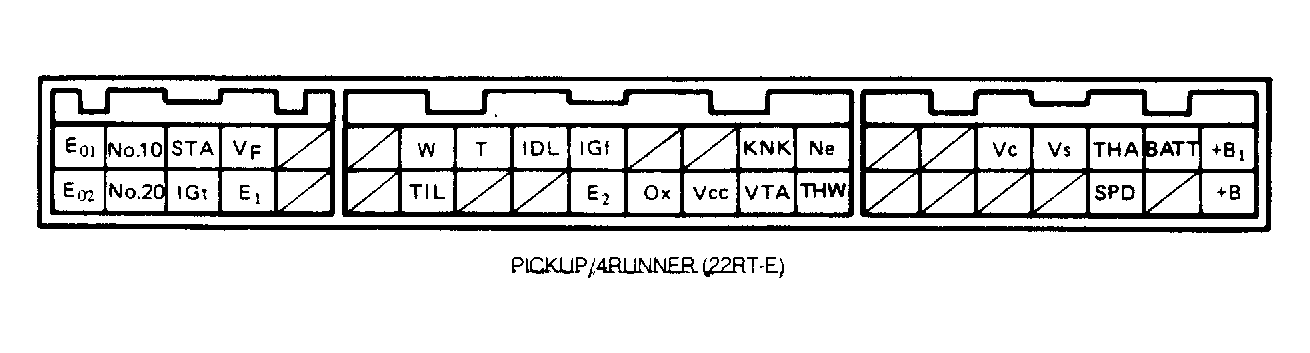

Fig 2: 22RT-E ECU Connector Pin Identification
G95243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

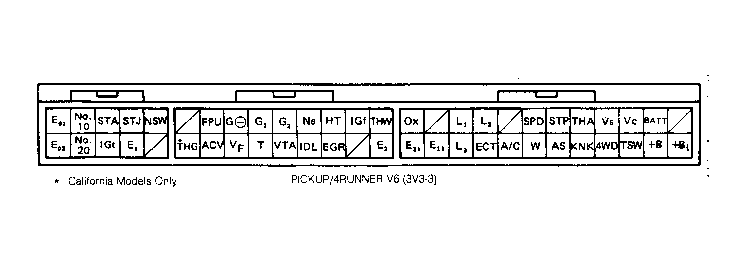

Fig 3: V6, 3V3-3 ECU Connector Pin Identification
G95244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
