2WD 3S-FE

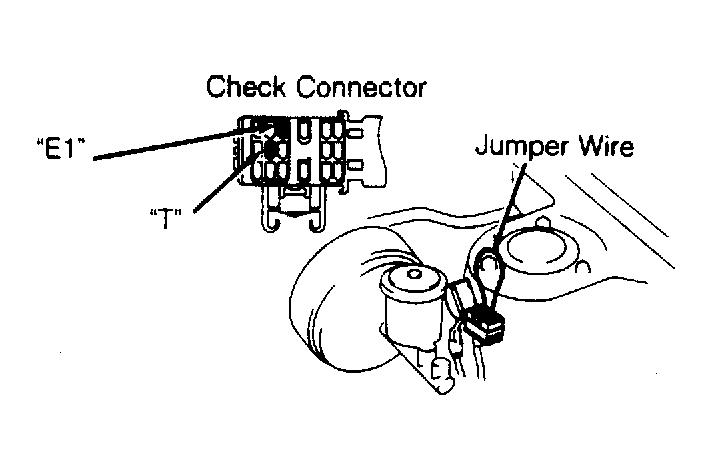

- Warm engine to normal operating temperature. Ensure idle speed is correct. Apply parking brake and place transaxle in Neutral. Install jumper wire between terminals "T" and "E1" of check connector located near left shock tower. See Fig 1.
- Note that engine RPM is maintained at 600-800 RPM on Celica models.
- If engine RPM was not within specification, disconnect ISC valve connector. Using ohmmeter, measure resistance between terminals "B +" and "ISC1" AND "ISC2". See Fig 2. Replace valve if resistance is not within 16-17 ohms.
