Celica All-Trac
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Computer Control System
>>
System Testing
>>
No. 11 Test, Ecu Power Source
No. 11 Test, Ecu Power Source

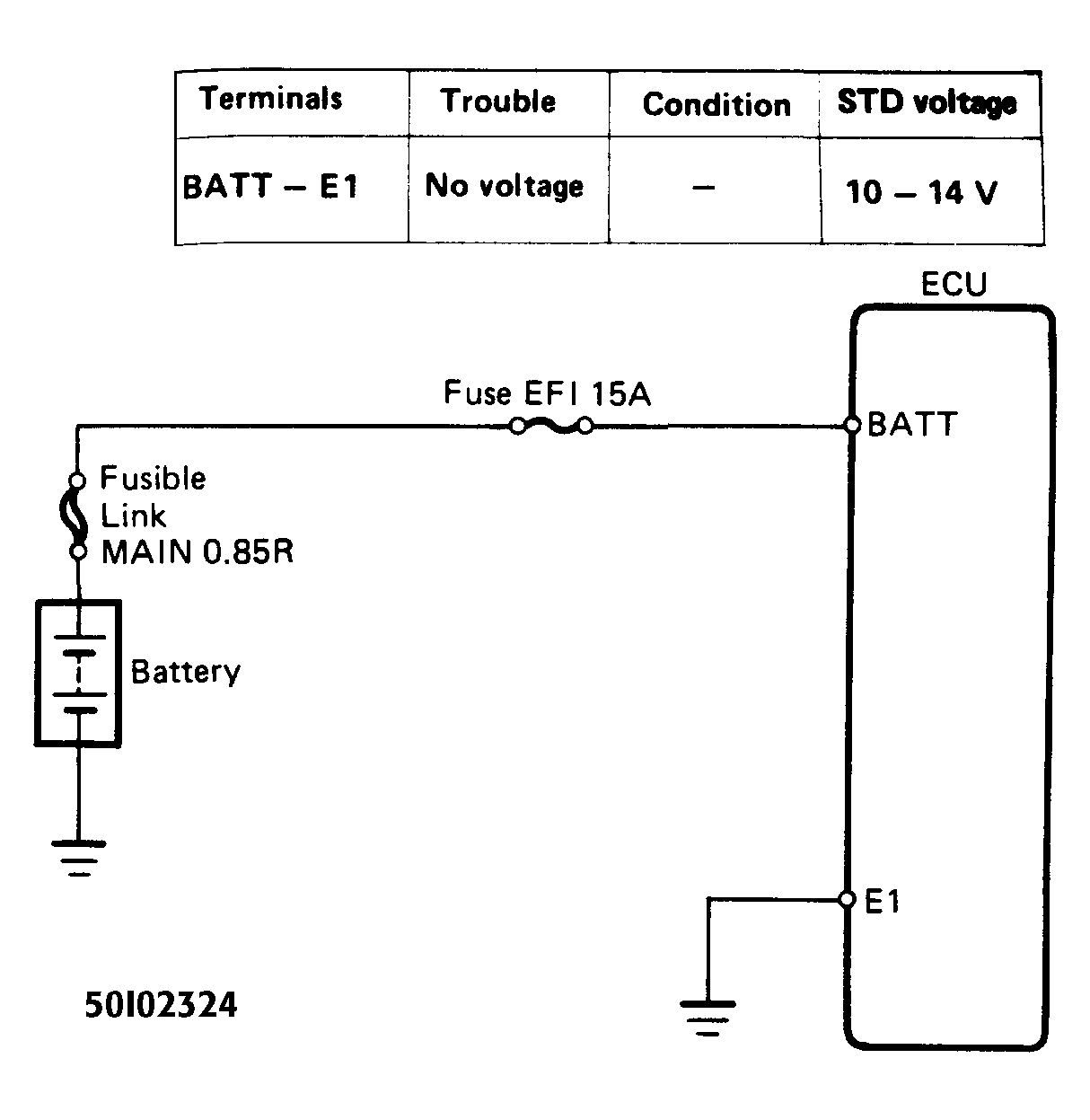

Fig 1: No. 11 Test Schematic, ECU Power Source
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

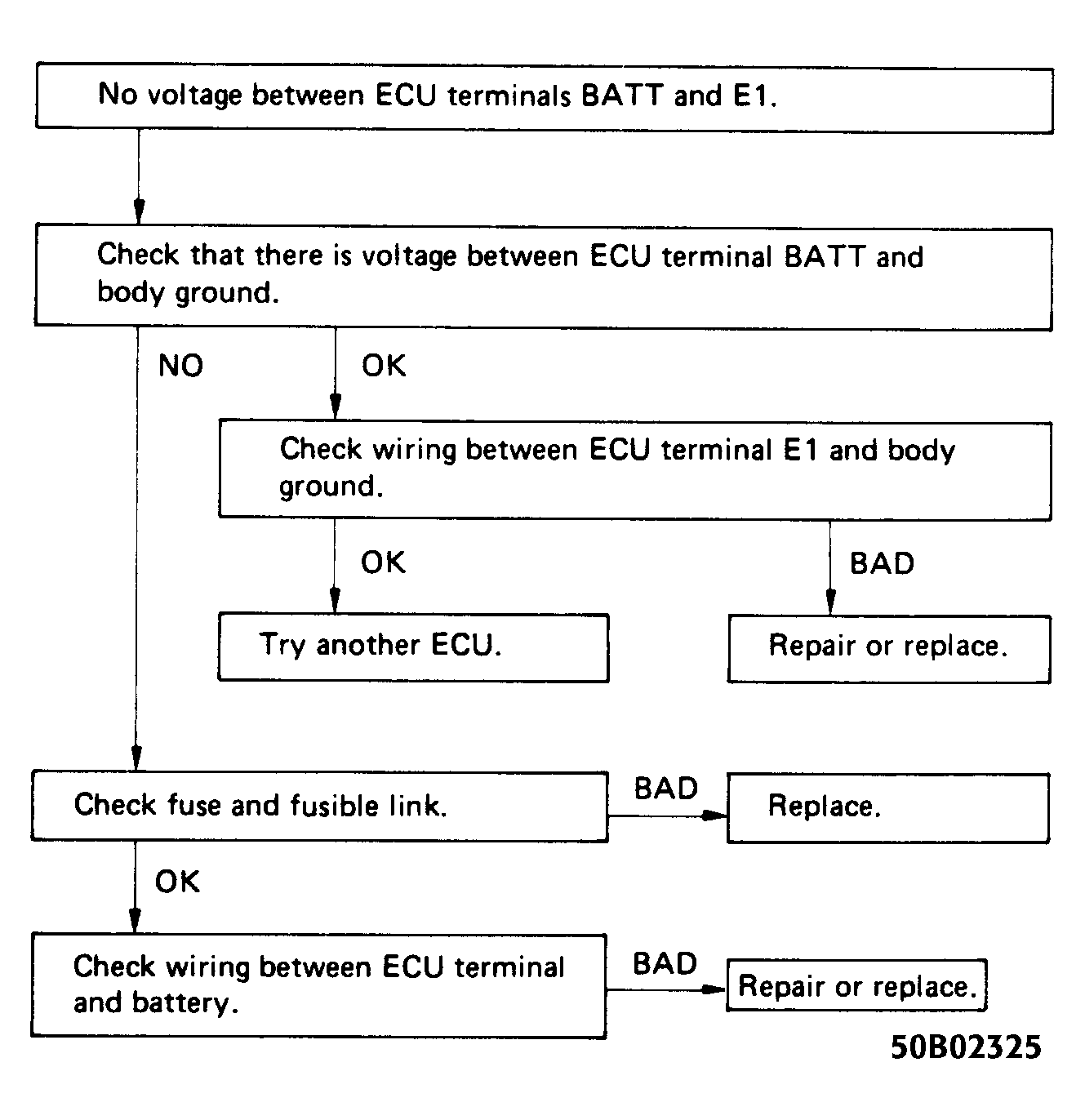

Fig 2: No. 11 Test Flow Chart, ECU Power Source
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
