No. 14 Test, ISC Valve Circuit Test
No. 14 Test, ISC Valve Circuit Test

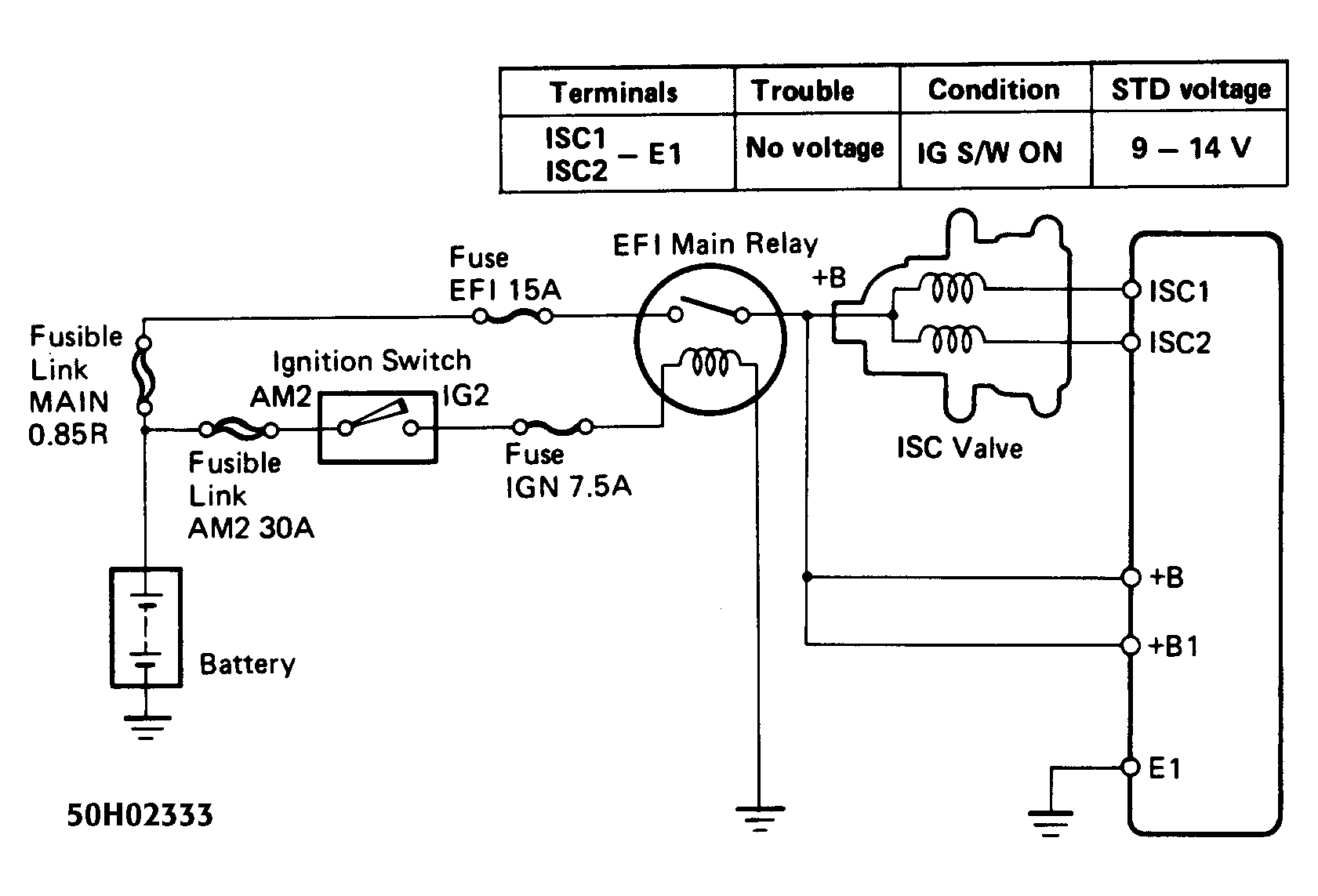

Fig 1: Exc. 2WD (W/3S-GE), No. 14 Test Schematic, ISC Valve Circuit Test
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

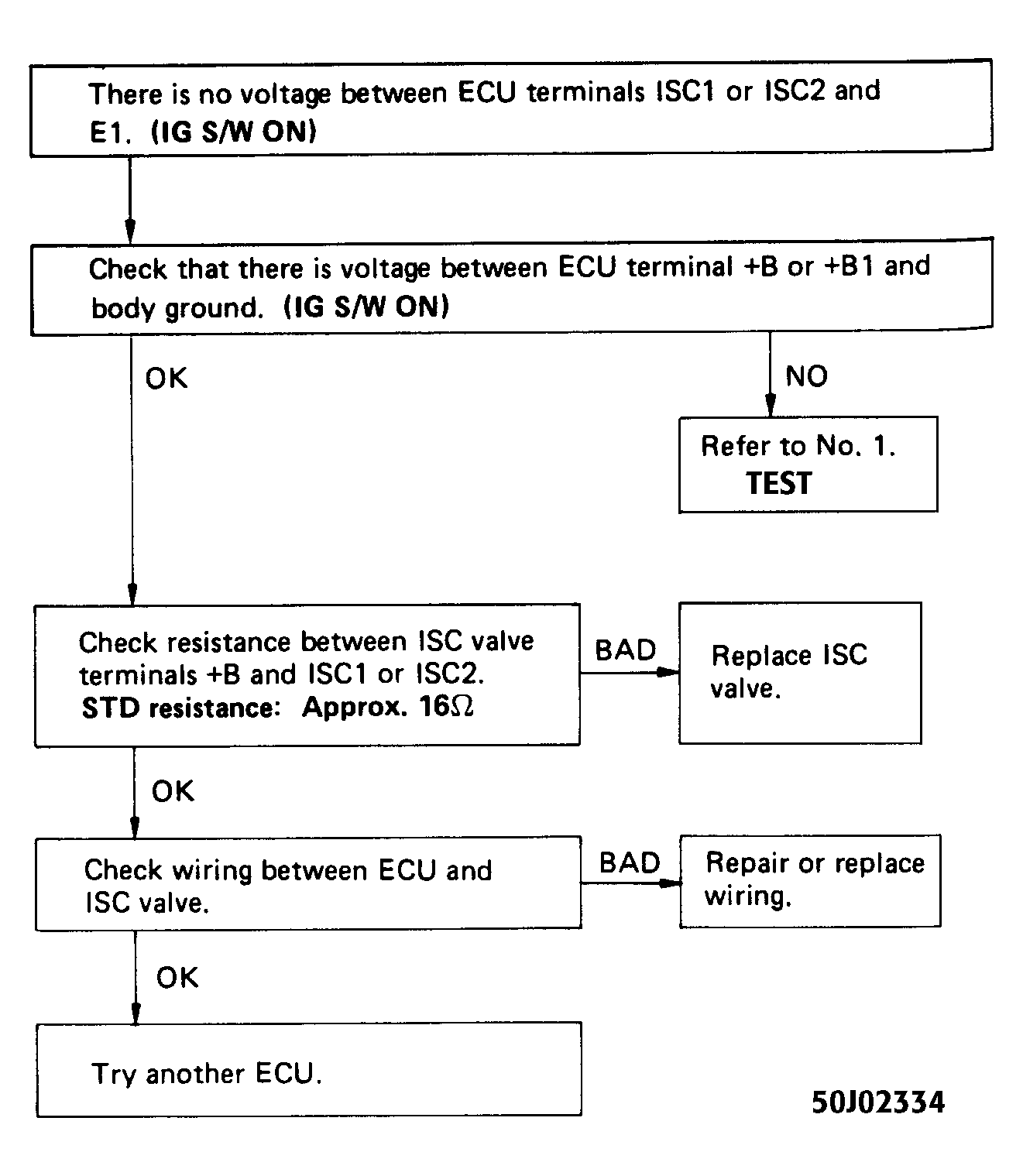

Fig 2: Exc. 2WD (W/3S-GE), No. 14 Test Flow Chart, ISC Valve Ckt. Test
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

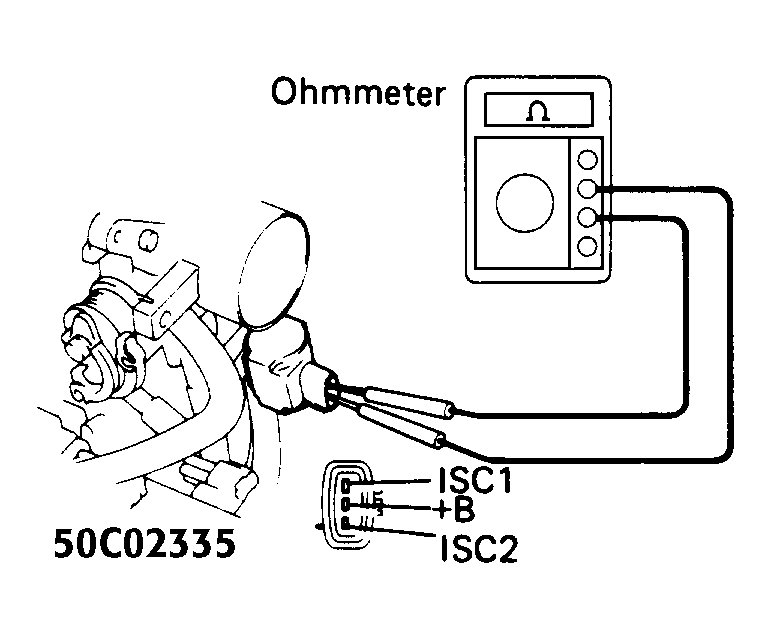

Fig 3: Exc. 2WD (W/3S-GE), No. 14 Test, ISC Valve Resistance Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
