No. 5 Test, Code 24, Intake Air Temp. Sensor Signal

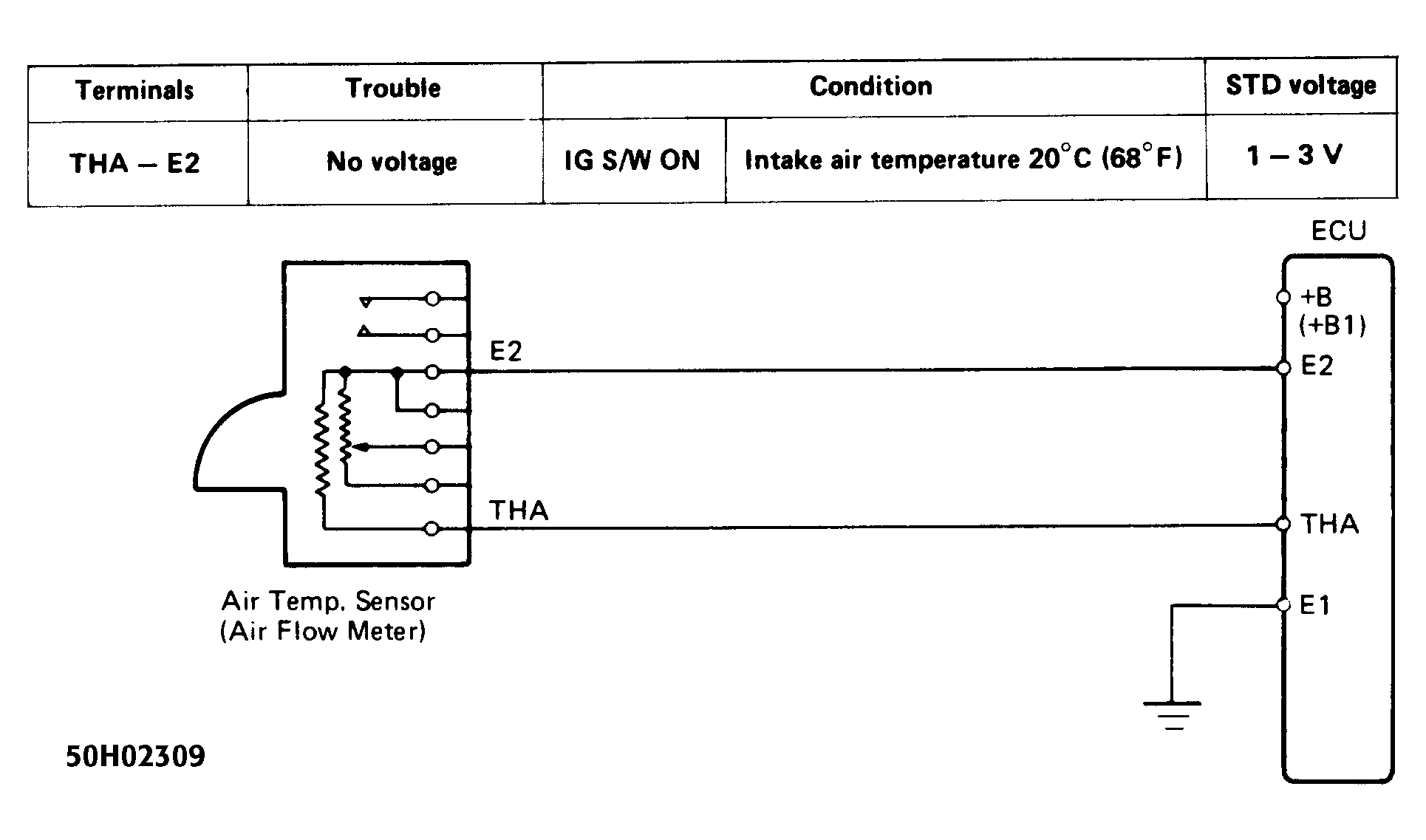

Fig 1: No. 5 Test, Code 24 Schematic, Intake Air Temp. Sens. Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

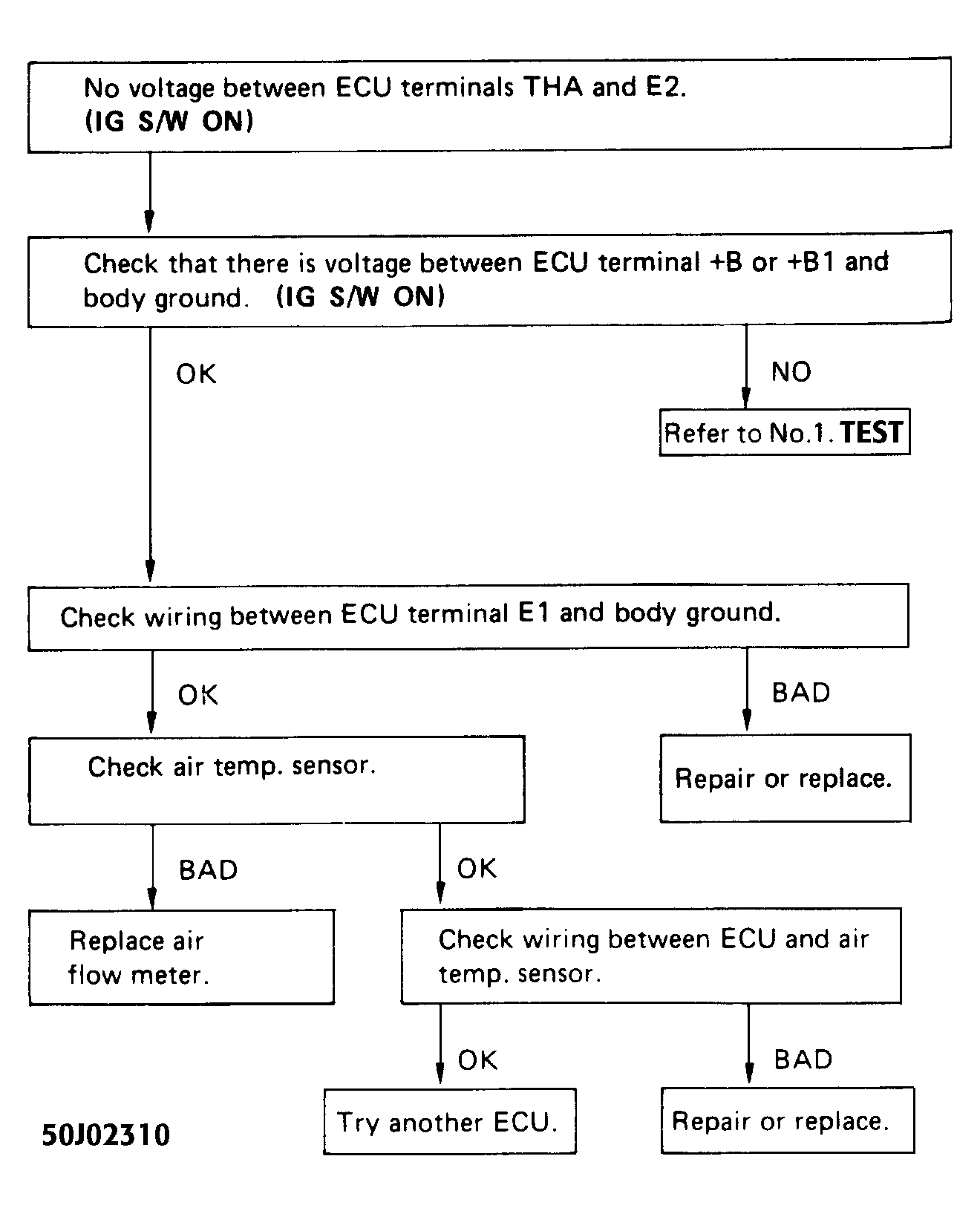

Fig 2: No. 5 Test, Code 24 Flow Chart, Intake Air Temp. Sens. Sig.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
